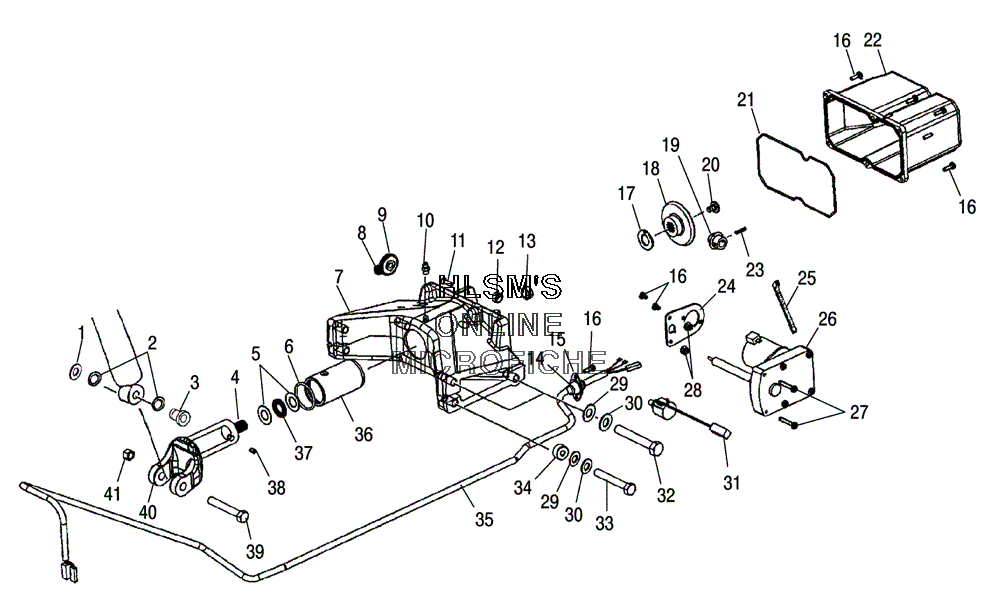

ELECTRIC MODULE (M-12) (ACE) для Polaris 600 EDGE TOURING 50th ANNIVERSARY (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
15133403 BUSHINGBUSHING
-
25411092 O-RING (LEFT)O-RING (LEFT)
-
35133402 BUSHING FLANGEBUSHING FLANGE
-
45133159 SHAFT SCREWSHAFT SCREW
-
53514388 BEARING RACEWAYBEARING RACEWAY
-
65412229 O-RINGO-RING
-
71541692 CASTING, ELECTRIC ASSY (INCL 6, 10, 12, 13, 36)CASTING, ELECTRIC ASSY (INCL 6, 10, 12, 13, 36)
-
75133155 CASTING ELECTRIC ASSYCASTING ELECTRIC ASSY
-
85434728 GEAR PLASTIC, 12T SPURGEAR PLASTIC, 12T SPUR
-
95434727 GEAR PLASTIC, 32T SPURGEAR PLASTIC, 32T SPUR
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCREW HEXAGON SOC HEADSCREW HEXAGON SOC HEAD
-
123514385 BEARING PLAINBEARING PLAIN
-
133514403 BEARING PLAINBEARING PLAIN
-
145434492 GROMMET WIRE, ELECTRICGROMMET WIRE, ELECTRIC
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER THRUSTWASHER THRUST
-
183221135 GEAR BEVEL, LARGEGEAR BEVEL, LARGE
-
193221136 GEAR BEVEL, SMALLGEAR BEVEL, SMALL
-
207518152 SCREW TRTXSCREW TRTX
-
215434293 SEAL COVERSEAL COVER
-
225434292 COVER MOTOR, ELECTRICCOVER MOTOR, ELECTRIC
-
237661161 PIN DRIVLOK (LEFT)PIN DRIVLOK (LEFT)
-
245246536 PLATE MOTOR SUPPORT,PLATE MOTOR SUPPORT,
-
257080138 CABLE TIE (LEFT)CABLE TIE (LEFT)
-
264010596 MOTOR ELECTRICMOTOR ELECTRIC
-
277518087 SCREW TRX/PN HEADSCREW TRX/PN HEAD
-
287547004 NUT (LEFT)NUT (LEFT)
-
297556042 WASHER FLATWASHER FLAT
-
307552603 WASHER, SPRING LOCK (LEFT)WASHER, SPRING LOCK (LEFT)
-
314010780 POTENTIOMETER 10 TURNPOTENTIOMETER 10 TURN
-
327518006 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
337518005 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
345133351 SPACERSPACER
-
352461104 HARNESS WIRE, ELECTRICHARNESS WIRE, ELECTRIC
-
365133155 CASTING ELECTRIC ASSYCASTING ELECTRIC ASSY
-
373514387 BEARING THRUSTBEARING THRUST
-
387518037 SCREW SETSCREW SET
-
397515438 BOLTBOLT
-
405133325 CLEVIS MACHINEDCLEVIS MACHINED
-
417542439 NUT, NYLOK (LEFT)NUT, NYLOK (LEFT)
