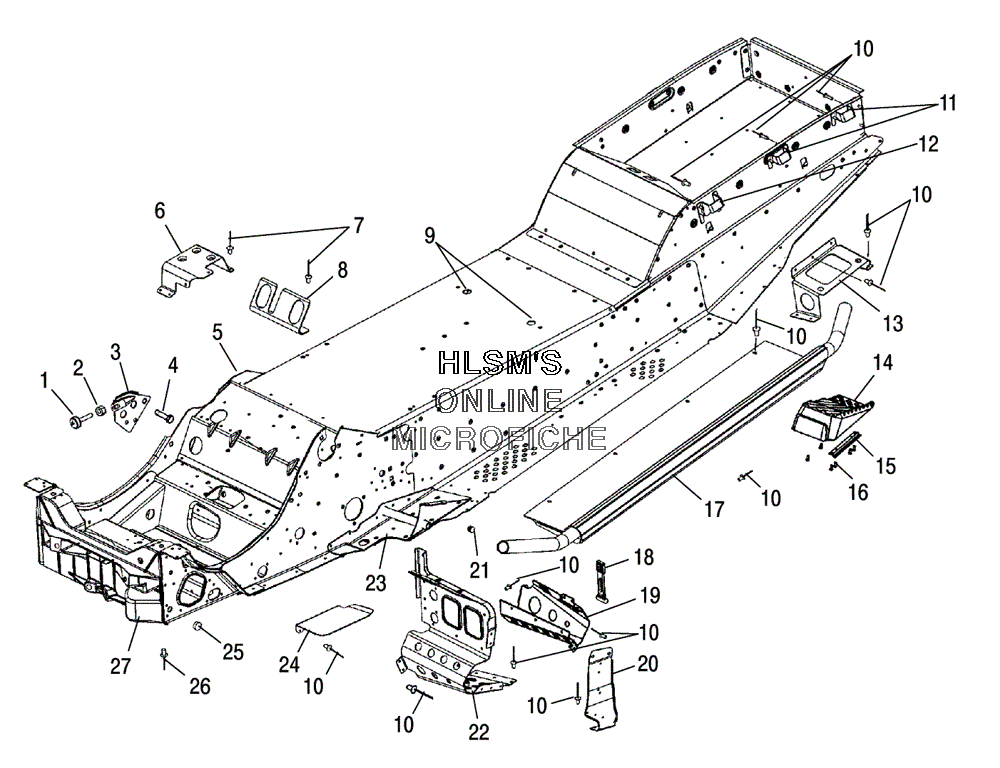

FRAME - CHASSIS для Polaris 600 EDGE TOURING 50th ANNIVERSARY (S05NT6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
27542404 NUTNUT
-
31013379 WELD TORQUE STOPWELD TORQUE STOP
-
47517632 SCREWSCREW
-
51014451-309 CHASSIS, SERVICE NAT ASSYCHASSIS, SERVICE NAT ASSY
-
65245202 BRACKET OIL BOTTLEBRACKET OIL BOTTLE
-
77621432 RIVETRIVET
-
85246177 BRACKET AIRBOXBRACKET AIRBOX
-
97081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
107661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
115246278-067 HOOK CARGO (BLACK)HOOK CARGO (BLACK)
-
125246439-067 HOOK CARGO (FRONT/BLACK)HOOK CARGO (FRONT/BLACK)
-
135246275-067 BRACKET ACC, ATTACHOMETER (LOWER/LEFT/BLACK)BRACKET ACC, ATTACHOMETER (LOWER/LEFT/BLACK)
-
135246276-067 BRACKET ACC, ATTACHOMETER (LOWER/RIGHT/BLACK)BRACKET ACC, ATTACHOMETER (LOWER/RIGHT/BLACK)
-
141013857 FOOTREST, PASSENGER ASSY (LEFT) (INCL 15, 16)FOOTREST, PASSENGER ASSY (LEFT) (INCL 15, 16)
-
141013858 FOOTREST, PASSENGER ASSY (RIGHT) (INCL 15, 16)FOOTREST, PASSENGER ASSY (RIGHT) (INCL 15, 16)
-
155246435 SUBSTITUTED BY 9990005SUBSTITUTED BY 9990005
-
167512076 SCREW (LEFT)SCREW (LEFT)
-
171240133 WELD RUNNING BOARD COOLER (LEFT)WELD RUNNING BOARD COOLER (LEFT)
-
171240134 WELD RUNNING BOARD COOLER (RIGHT)WELD RUNNING BOARD COOLER (RIGHT)
-
185433150 STRAPSTRAP
-
195245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
195245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
205246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
205246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
217081085 PLUG BARBED (.625)PLUG BARBED (.625)
-
225245288 FOOTREST (LEFT) (.080)FOOTREST (LEFT) (.080)
-
225247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
232202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
232202598 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
245221583 GUARD ADAPTER DRIVEGUARD ADAPTER DRIVE
-
257080416 PLUG, HOLEPLUG, HOLE
-
267661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
275132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
