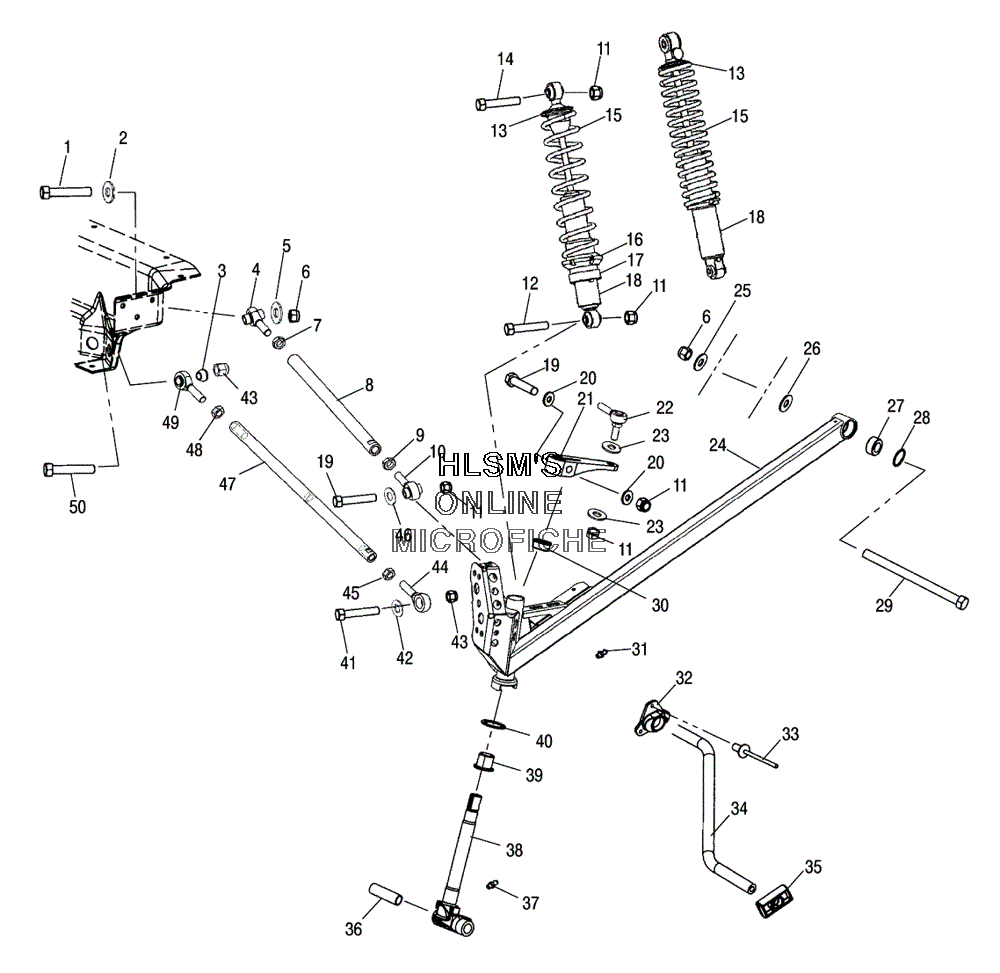

SUSPENSION - FRONT для Polaris 700 RMK (S05NK6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
27556212 WASHER 7/16 SAEWASHER 7/16 SAE
-
35132454 BUSHING, SPACERBUSHING, SPACER
-
47061081 ROD END RADIUS (LEFT)ROD END RADIUS (LEFT)
-
57555852 WASHER, FLATWASHER, FLAT
-
67547066 NUT 7/16-20, NYLOK, YNUT 7/16-20, NYLOK, Y
-
77547117 NUT (LEFT)NUT (LEFT)
-
85133691 TUBE RADIUS ROD (UPPER)TUBE RADIUS ROD (UPPER)
-
97542520 NUT, JAMNUT, JAM
-
107061104 ROD END 7/16 (RIGHT)ROD END 7/16 (RIGHT)
-
117542439 NUT, NYLOKNUT, NYLOK
-
127515433 SCREWSCREW
-
135630580 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
147515415 SCREWSCREW
-
157041551-067 SPRING COMPRESSION IFS (BLACK) (NITREX) (10.75/100)SPRING COMPRESSION IFS (BLACK) (NITREX) (10.75/100)
-
157041576-067 SPRING COMPRESSION IFS (BLACK) (IFP) (10.85/100)SPRING COMPRESSION IFS (BLACK) (IFP) (10.85/100)
-
165431734 RING, SPRING PRELOAD ADJUSTER (NITREX)RING, SPRING PRELOAD ADJUSTER (NITREX)
-
171500063 RETAINER, SPRING, BODY THREADED (NITREX)RETAINER, SPRING, BODY THREADED (NITREX)
-
187042197 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
187042059 SHOCK IFS, IFP (SEE SUSPENSION - SHOCK IFS)SHOCK IFS, IFP (SEE SUSPENSION - SHOCK IFS)
-
197517583 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
207555832 WASHERWASHER
-
215133060 ARM STEERING MACHINEDARM STEERING MACHINED
-
227061109 ROD END 3/8 (RIGHT)ROD END 3/8 (RIGHT)
-
237555797 WASHER, FLATWASHER, FLAT
-
241821260-385 TRAILING ARM SERVICE ASSY (LEFT/CLOUD SILVER) (INCL. 27, 28)TRAILING ARM SERVICE ASSY (LEFT/CLOUD SILVER) (INCL. 27, 28)
-
241821261-385 TRAILING ARM SERVICE ASSY (RIGHT/CLOUD SILVER) (INCL. 27, 28)TRAILING ARM SERVICE ASSY (RIGHT/CLOUD SILVER) (INCL. 27, 28)
-
257555820 WASHER, FLATWASHER, FLAT
-
265132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
277061042 BEARING SPHERICAL 7/16 PLASTICBEARING SPHERICAL 7/16 PLASTIC
-
287710437 RING, RETAININGRING, RETAINING
-
297512099 SCREWSCREW
-
303573909 BUSHING FLANGEBUSHING FLANGE
-
317080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
325433814 BUSHING, TORSION BAR (9/16")BUSHING, TORSION BAR (9/16")
-
337621452 RIVETRIVET
-
345246871-067 BAR TORSION, 9/16 (BLACK)BAR TORSION, 9/16 (BLACK)
-
355412063 SLIDE SWAY BAR 9/16SLIDE SWAY BAR 9/16
-
365010158 BUSHING, PIVOTBUSHING, PIVOT
-
377080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
386230225-067 SHAFT SPINDLE WITH STEERING STOP (BLACK)SHAFT SPINDLE WITH STEERING STOP (BLACK)
-
393574208 BUSHING, FLANGEDBUSHING, FLANGED
-
407556509 BUSHINGBUSHING
-
417512410 BOLTBOLT
-
427556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
437542439 NUT, NYLOKNUT, NYLOK
-
447061103 ROD END 1/2 (RIGHT)ROD END 1/2 (RIGHT)
-
457542711 NUT JAMNUT JAM
-
467556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
475132953 TUBE RADIUS ROD (LOWER)TUBE RADIUS ROD (LOWER)
-
487547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
497061087 ROD END RADIUS (LEFT/LOWER)ROD END RADIUS (LEFT/LOWER)
-
507518041 BOLT HEXAGON CAPBOLT HEXAGON CAP
