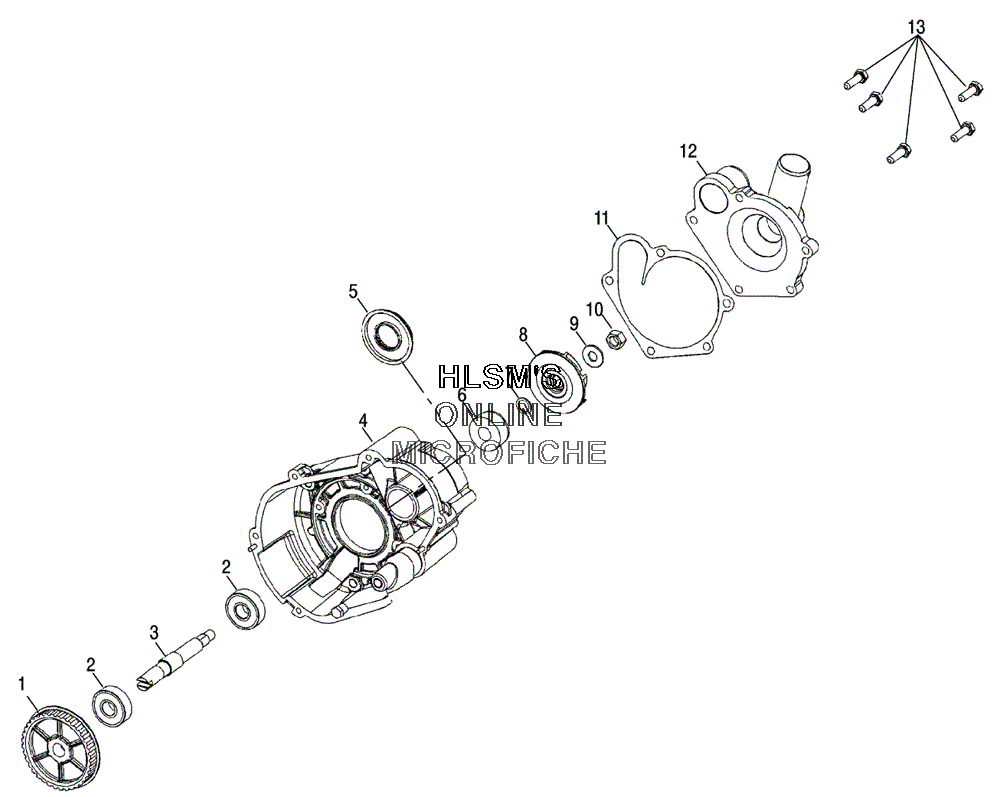

WATER PUMP для Polaris 700 RMK (S05NK6ES) - 2005 года выпуска
-
№АртикулНазвание
-
13021044 PULLEY 17.00PULLEY 17.00
-
23514311 BEARING, BALLBEARING, BALL
-
35132273 SHAFT 17.00SHAFT 17.00
-
53610044 SEALSEAL
-
63610067 SEALSEAL
-
77556006 WASHER, FLATWASHER, FLAT
-
85432330 IMPELLERIMPELLER
-
97555874 WASHER, FLATWASHER, FLAT
-
107546804 NUT, HEXAGON NYLOKNUT, HEXAGON NYLOK
-
115811627 GASKET, COVERGASKET, COVER
-
125631280 COVER WATER PUMP WITH OUT NTPCOVER WATER PUMP WITH OUT NTP
-
137516822 SCREWSCREW
