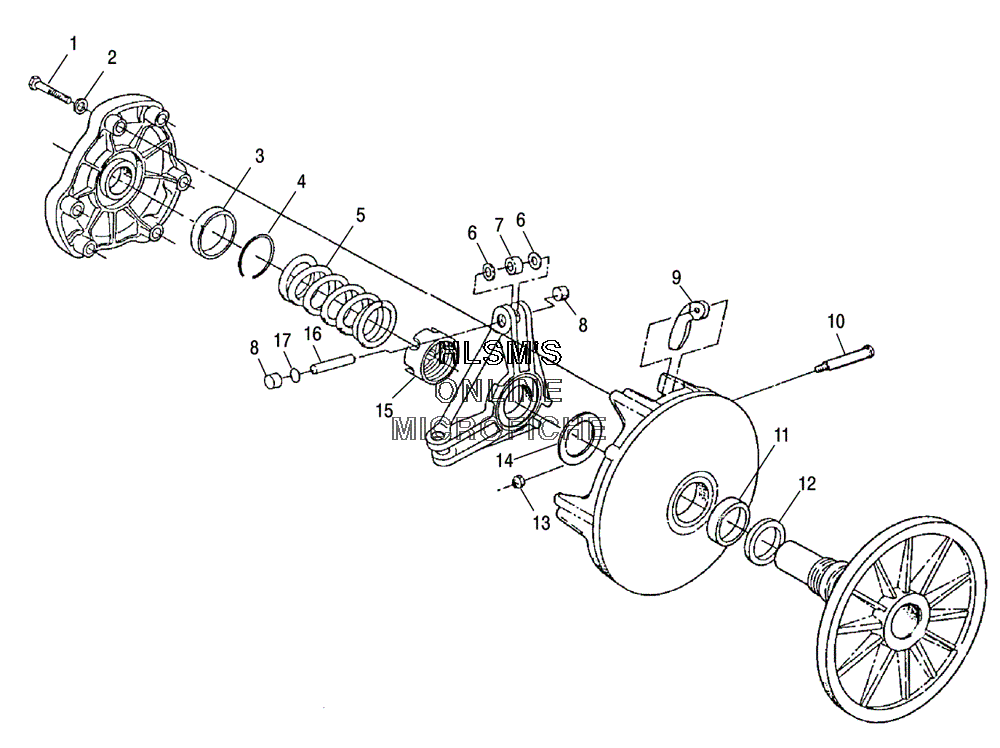

CLUTCH - DRIVE для Polaris FRONTIER TOURING (S05NT7DS) - 2005 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57041102 SPRING CLUTCH (YELLOW)SPRING CLUTCH (YELLOW)
-
65430945 WASHERWASHER
-
71321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
85430445 BUTTON, GUIDEBUTTON, GUIDE
-
91321586 WT/BUSH ASSYWT/BUSH ASSY
-
107515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
113576502 BEARING, SLEEVEBEARING, SLEEVE
-
125010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
137541906 NUT FLEXLOCNUT FLEXLOC
-
145210754 SPACER (.050)SPACER (.050)
-
145210753 SPACER (.032)SPACER (.032)
-
145242981 SPACER (.025)SPACER (.025)
-
145210752 SPACER (.020)SPACER (.020)
-
155020425 NUT, JAMNUT, JAM
-
165133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
-
172200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
171321810 DRIVE CLUTCH ASSY, BASIC 102 (INCL. ALL LESS 5, 9)DRIVE CLUTCH ASSY, BASIC 102 (INCL. ALL LESS 5, 9)
-
172201169 WIDE ROLLER SPIDER REBUILD KIT (INCL. 6-8, 10, 16)WIDE ROLLER SPIDER REBUILD KIT (INCL. 6-8, 10, 16)
