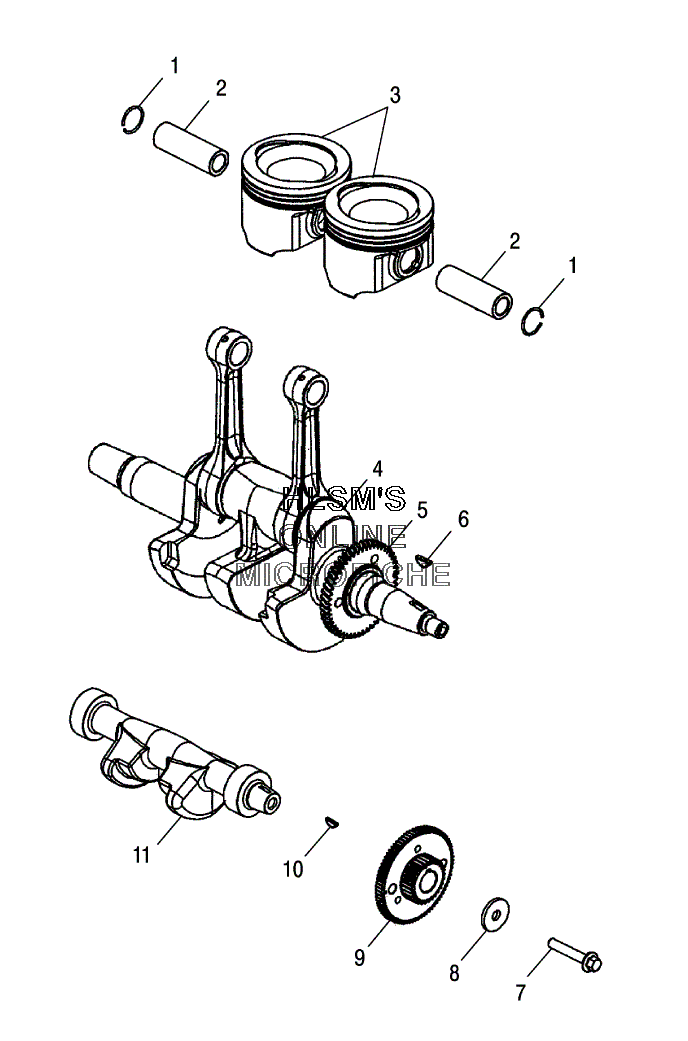

PISTON AND CRANKSHAFT для Polaris FRONTIER TOURING (S05NT7DS) - 2005 года выпуска
-
№АртикулНазвание
-
13021264 CIRCLIP PISTON (80MM)CIRCLIP PISTON (80MM)
-
23021263 PIN PISTON (80MM)PIN PISTON (80MM)
-
32202136 PISTON RINGS KITPISTON RINGS KIT
-
42202443 CRANKSHAFT, KIT (INCL. 5) (SEE CRANKCASE ASSEMBLY)CRANKSHAFT, KIT (INCL. 5) (SEE CRANKCASE ASSEMBLY)
-
55133220 GEAR, CRANKSHAFTGEAR, CRANKSHAFT
-
67721117 KEY, WOODRUFFKEY, WOODRUFF
-
77517865 SCREW HEXAGON FLANGE DSCREW HEXAGON FLANGE D
-
87555982 WASHER, RETAINING (8.5X28X3)WASHER, RETAINING (8.5X28X3)
-
107721131 KEY WOOD RUFFKEY WOOD RUFF
-
115132485 SHAFT BALANCESHAFT BALANCE
-
112202445 PISTON KIT (INCL. 1-3)PISTON KIT (INCL. 1-3)
