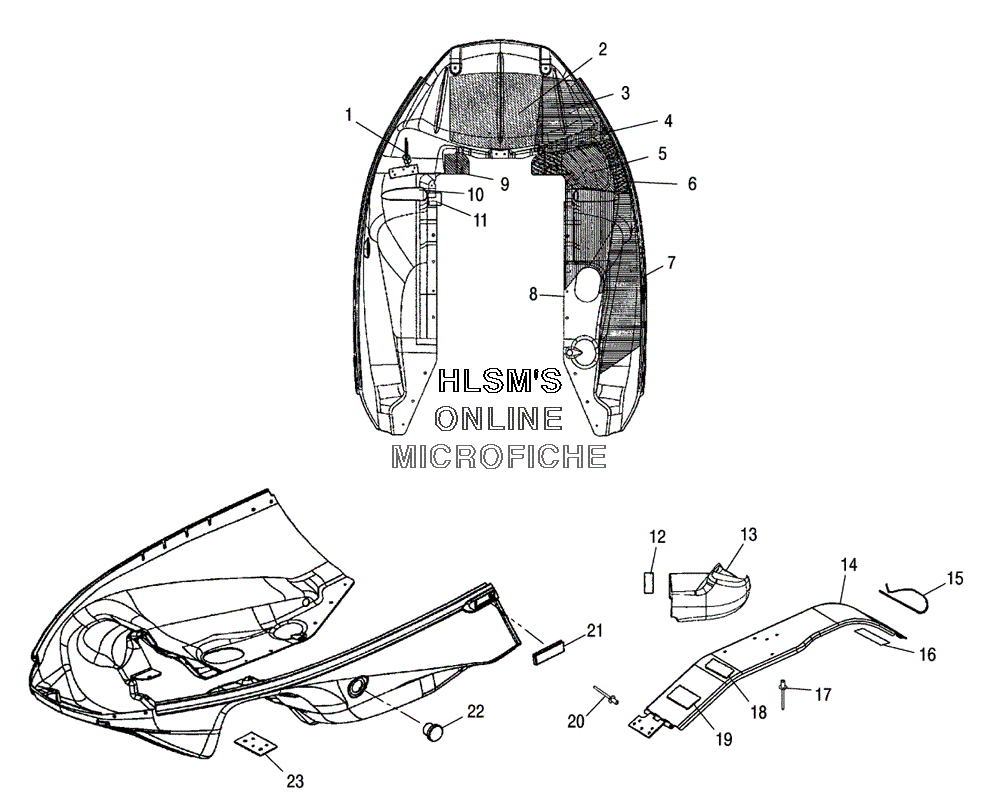

NOSEPAN ASSEMBLY #2 для Polaris TRAIL TOURING (S05NU5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17621462 RIVETRIVET
-
25811458 FOIL TAPE (12"X12")FOIL TAPE (12"X12")
-
35812040 FOIL (FRONT)FOIL (FRONT)
-
45812067 FOIL, TAPEFOIL, TAPE
-
55812039 FOILFOIL
-
65812068 FOIL, TAPEFOIL, TAPE
-
75812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
85812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
95812020 FOIL, TAPEFOIL, TAPE
-
107080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
115811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
125812353 FOAM WITH PSAFOAM WITH PSA
-
135434531 DUCT ENGINE AIR OUTLETDUCT ENGINE AIR OUTLET
-
141013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
157080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
165812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
177621485 RIVETRIVET
-
187079297 DECAL WARNING, ENGINE AND CLUTCHDECAL WARNING, ENGINE AND CLUTCH
-
197170742 DECAL TROUBLE SHOOTDECAL TROUBLE SHOOT
-
207621402 RIVET, POPRIVET, POP
-
212670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
225433926 PLUG, OBLONGPLUG, OBLONG
-
235211722 PLATE, BACKERPLATE, BACKER
