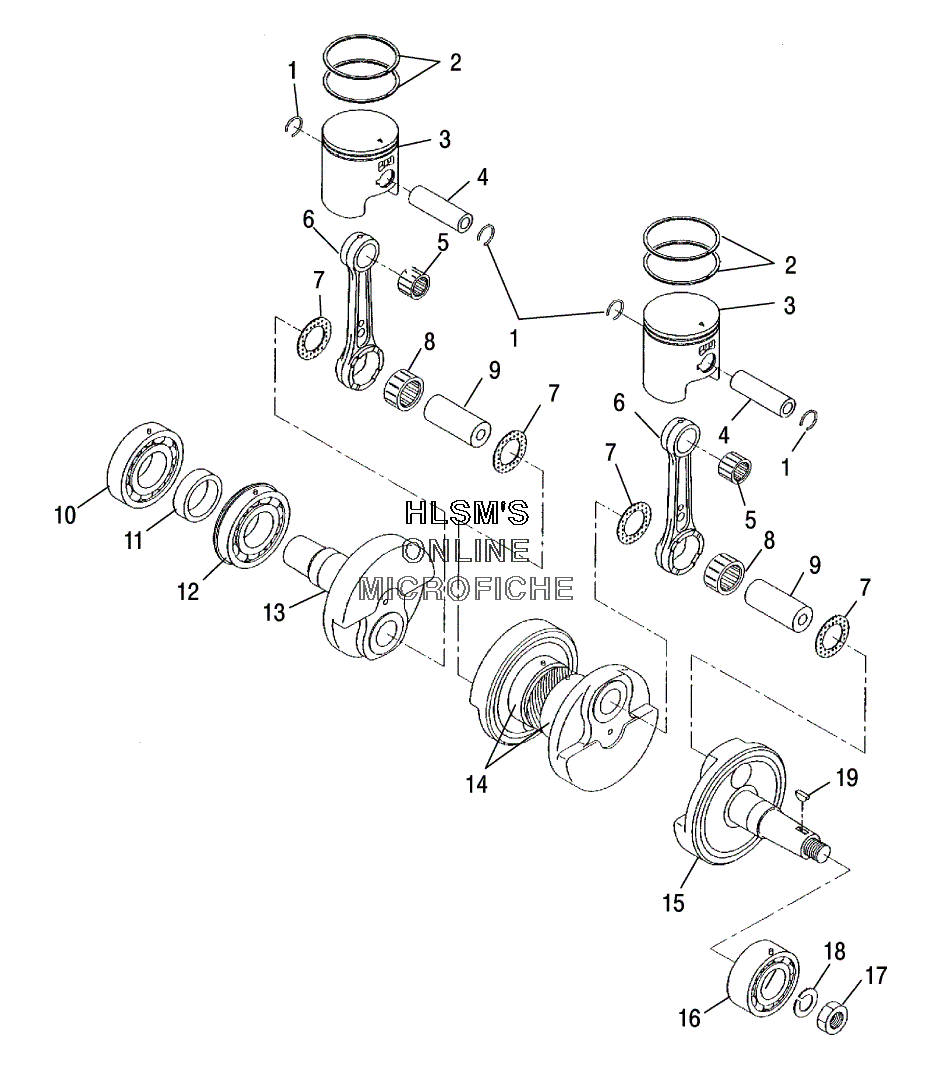

PISTON AND CRANKSHAFT для Polaris TRAIL TOURING (S05NU5BS) - 2005 года выпуска

№

Артикул

Название
1

3084167 CLIP, PISTON PIN

CLIP, PISTON PIN

1 350 ₽
2

3086988 SET PISTON, RING (STANDARD)

SET PISTON, RING (STANDARD)

6 030 ₽
2

3086989 SET PISTON, RING (.010"/.25MM O/S)

SET PISTON, RING (.010"/.25MM O/S)

6 240 ₽
2

3086990 SET PISTON, RING (.020"/50MM O/S)

SET PISTON, RING (.020"/50MM O/S)

6 240 ₽
3

3089485 PISTON (STANDARD) (INCL. 1)

PISTON (STANDARD) (INCL. 1)

29 120 ₽
3

3089486 PISTON (.010"/.25MM O/S) (INCL. 1)

PISTON (.010"/.25MM O/S) (INCL. 1)

30 160 ₽
3

3089487 PISTON (.020"/.50MM O/S) (INCL. 1)

PISTON (.020"/.50MM O/S) (INCL. 1)

30 160 ₽
4

3083838 PIN, PISTON

PIN, PISTON

6 240 ₽
5

3085595 BEARING, SMALL END

BEARING, SMALL END

3 750 ₽
6

3240083 ROD, CONNECTING

ROD, CONNECTING

30 160 ₽
7

3083277 SPACER, CRANKPIN

SPACER, CRANKPIN

3 430 ₽
8

3086390 BEARING END, LARGE

BEARING END, LARGE

12 480 ₽
9

3083456 PIN, CRANK

PIN, CRANK

5 830 ₽
10

3085754 BEARING, BALL

BEARING, BALL

12 480 ₽
11

3085677 SPACER

SPACER

2 810 ₽
12

3085753 BEARING, BALL

BEARING, BALL

12 480 ₽
13

3088199 CRANKSHAFT, 3 (PTO SIDE)

CRANKSHAFT, 3 (PTO SIDE)

64 480 ₽
14

3084586 BEARING, BALL

BEARING, BALL

8 110 ₽
15

3088198 CRANKSHAFT (INCL. 6-16)

CRANKSHAFT (INCL. 6-16)

260 ₽
15

3087177 CRANKSHAFT 1 (MAG SIDE)

CRANKSHAFT 1 (MAG SIDE)

87 360 ₽
16

3084681 BEARING, BALL

BEARING, BALL

19 760 ₽
17

3083093 NUT

NUT

3 120 ₽
18

3083094 WASHER SPRING

WASHER SPRING

150 ₽
19

3081543 KEY WOODRUFF

KEY WOODRUFF

1 870 ₽
19

3085674 CRANKSHAFT 2, CENTER (INCL. 9)

CRANKSHAFT 2, CENTER (INCL. 9)

114 400 ₽
