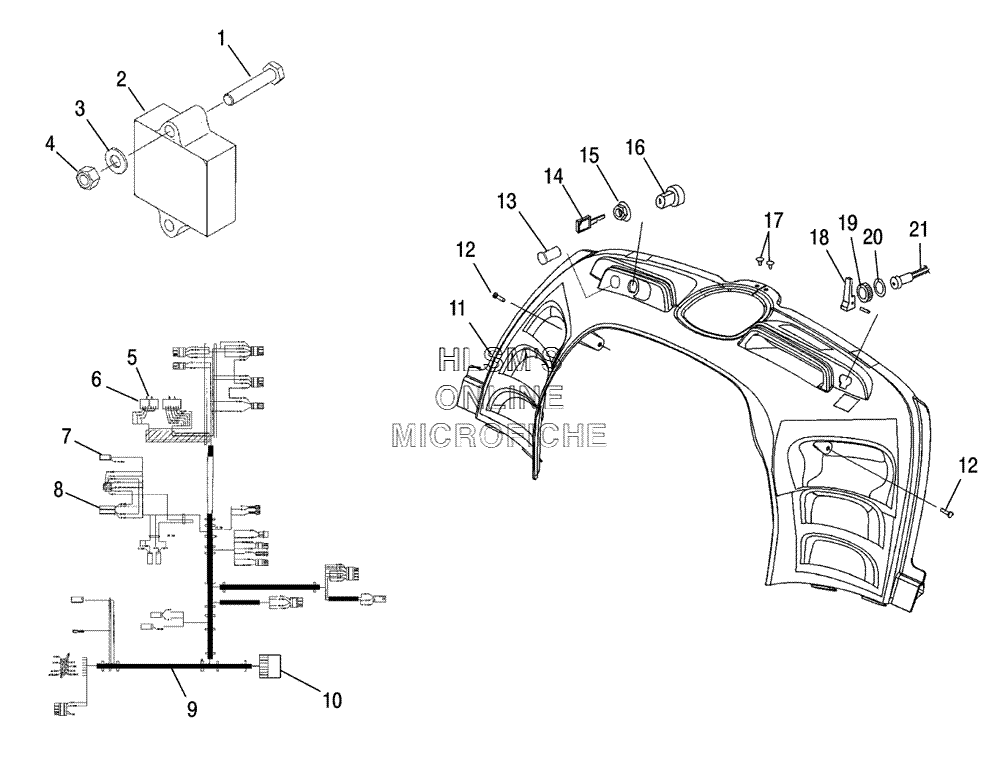

CONSOLE для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска
-
№АртикулНазвание
-
17517263 SCREW, HEXAGON SEMSSCREW, HEXAGON SEMS
-
24010794 REGULATOR AC/DCREGULATOR AC/DC
-
37555746 WASHERWASHER
-
47541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
54010193 HOUSING CONNECTORHOUSING CONNECTOR
-
64010192 SOCKETSOCKET
-
74020092 TERMINAL, RINGTERMINAL, RING
-
84020063 HOUSING, PACKHOUSING, PACK
-
92461148 HARNESS MAIN ER FS DIAGHARNESS MAIN ER FS DIAG
-
104020057 HOUSINGHOUSING
-
115434483-070 CONSOLE, SRP WITH ACCESSORIES (BLACK)CONSOLE, SRP WITH ACCESSORIES (BLACK)
-
127515199 SCREWSCREW
-
134010638 RECEPTACLE POD MOUNT 12 VOLTRECEPTACLE POD MOUNT 12 VOLT
-
145410611 N/A, USE COMPONENTS NOTE:N/A, USE COMPONENTS NOTE:
-
157547035 NUT, IGNITIONNUT, IGNITION
-
162200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
177670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
182200188 CHOKE CONTROL KIT (INCL. PIN)CHOKE CONTROL KIT (INCL. PIN)
-
197080229 NUTNUT
-
207571610 WASHER LOCKWASHER LOCK
-
217081092 CABLE CHOKE (INCL. 18, 19)CABLE CHOKE (INCL. 18, 19)
