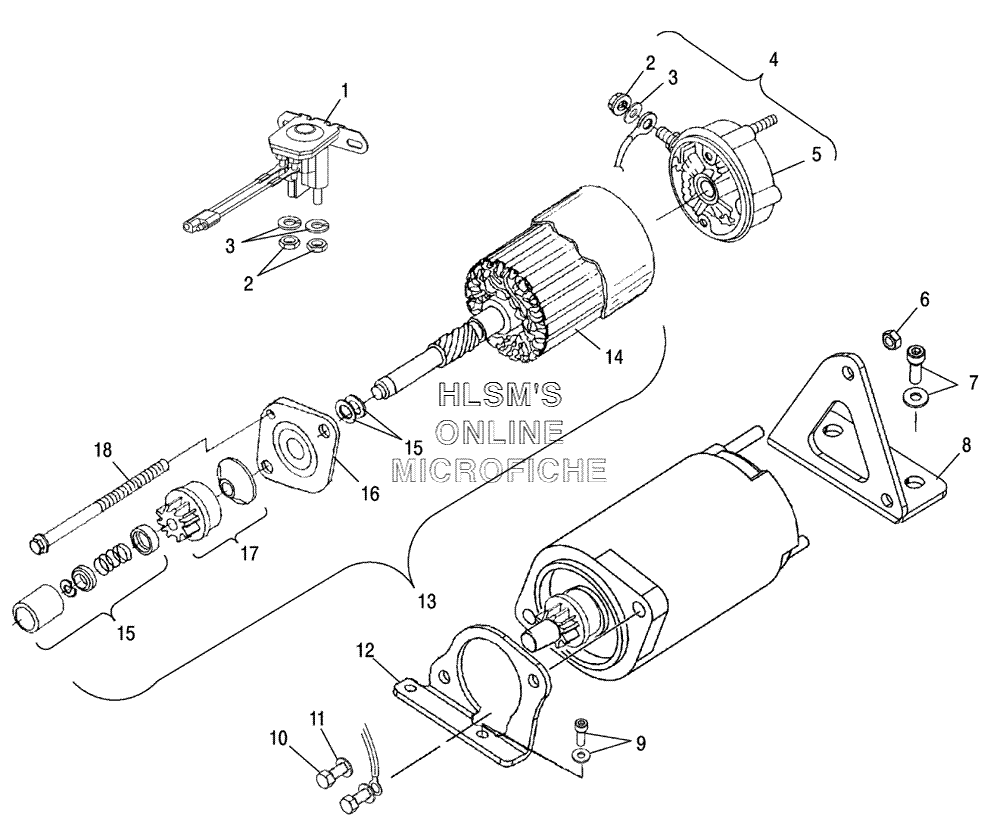

STARTING MOTOR для Polaris 340 Classic (S06ND3AS) - 2006 года выпуска
-
№АртикулНазвание
-
14011335 SWITCH MAGNETIC (INCL. 2, 3)SWITCH MAGNETIC (INCL. 2, 3)
-
27542105 NUT HEXAGONNUT HEXAGON
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
42200758 COMMUTATOR CAP KIT ASSY (INCL. 5)COMMUTATOR CAP KIT ASSY (INCL. 5)
-
52200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
67542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
77516815 SCREWSCREW
-
85241786 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
97516730 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
125241316 BRACKET, STARTER (FRONT) (3/LITE)BRACKET, STARTER (FRONT) (3/LITE)
-
134170006 MOTOR, STARTER DOMESTICMOTOR, STARTER DOMESTIC
-
142200756 ARMATURE KIT ASSYARMATURE KIT ASSY
-
152200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
162200757 DRIVECAP KIT ASSYDRIVECAP KIT ASSY
-
172200754 DRIVE KIT ASSYDRIVE KIT ASSY
-
182200753 SCREW KITSCREW KIT
