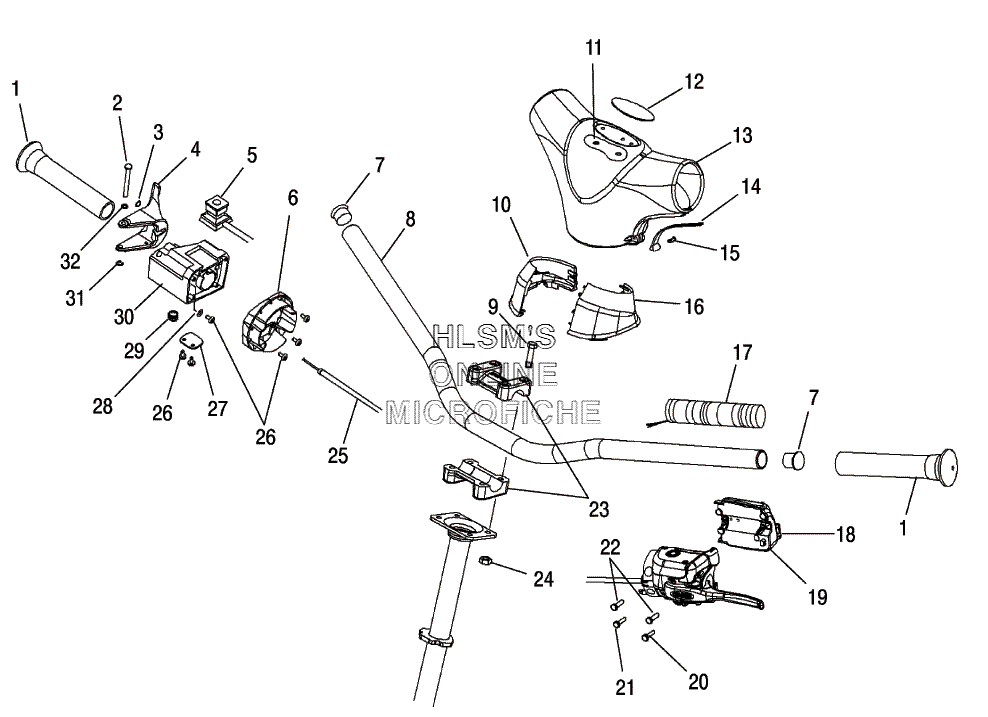

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 550 Classic (S05ND5BS) - 2006 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
42010171 LEVER HEATER HI/LO ASSY (35.5MM)LEVER HEATER HI/LO ASSY (35.5MM)
-
54110106 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
65433345 ADAPTER BLOCK THROTTLEADAPTER BLOCK THROTTLE
-
75431096 PLUGPLUG
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR CONSOLE (STD) (RIGHT)COLLAR CONSOLE (STD) (RIGHT)
-
117670106 NUT PUSH ON (.170-.180-Y)NUT PUSH ON (.170-.180-Y)
-
125434179 EMBLEM "STAR" PALM BEZEL HANDLEBAREMBLEM "STAR" PALM BEZEL HANDLEBAR
-
135433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
145433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
154010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
165434487 COLLAR CONSOLE (STD) (LEFT)COLLAR CONSOLE (STD) (LEFT)
-
172460677 HEATER, GRIP LO/MED/HIHEATER, GRIP LO/MED/HI
-
185433291 BUTTON SWITCH HI/LO CONTROL (LEFT)BUTTON SWITCH HI/LO CONTROL (LEFT)
-
192010206 CONTROL ASST E/R, BASIC (LEFT)CONTROL ASST E/R, BASIC (LEFT)
-
207517566 SCREW (1.50)SCREW (1.50)
-
217512078 SCREW (1.12)SCREW (1.12)
-
227517441 SCREW (.75)SCREW (.75)
-
235630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
247542122 NUT NYLOKNUT NYLOK
-
257081172 CABLE THROTTLECABLE THROTTLE
-
267511848 SCREWSCREW
-
275432261 HOLDER-WIREHOLDER-WIRE
-
287555727 WASHERWASHER
-
297512465 SCREW, SETSCREW, SET
-
305431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
317710401 RING, RETAININGRING, RETAINING
-
327555730 WASHERWASHER
