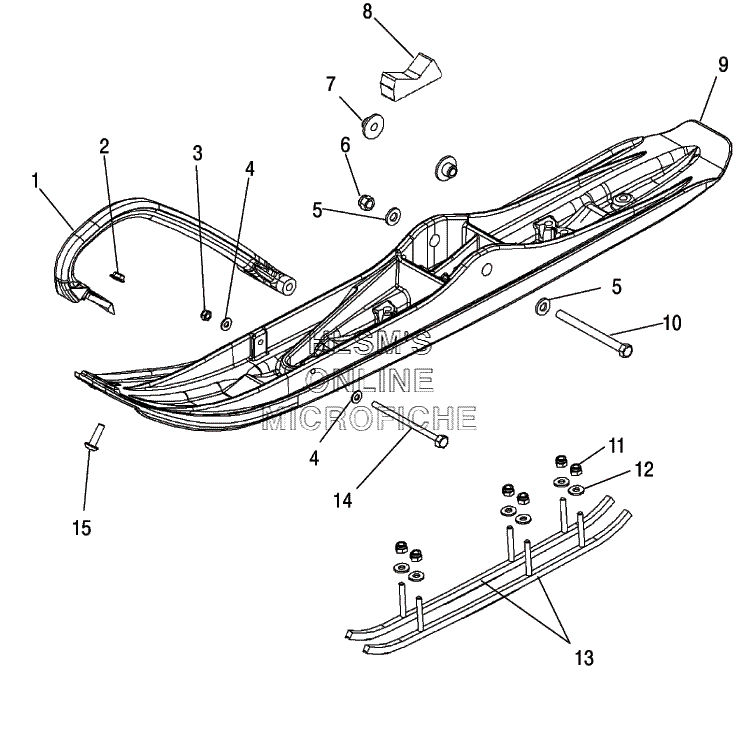

SKI ASSEMBLY для Polaris 550 Classic (S05ND5BS) - 2006 года выпуска
-
№АртикулНазвание
-
15435681-513 TOE PLASTIC, SKI (SUPER SONIC BLUE)TOE PLASTIC, SKI (SUPER SONIC BLUE)
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT NYLOKNUT NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHERWASHER
-
67542439 NUT, NYLOKNUT, NYLOK
-
75134797 BUSHINGBUSHING
-
85412018 STOP, RUBBERSTOP, RUBBER
-
91822808-070 SKI COMP (BLACK)(INCL. 7)SKI COMP (BLACK)(INCL. 7)
-
107518481 SCREWSCREW
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, WROUGHTWASHER, WROUGHT
-
147518047 BOLT, HEXAGON/CAPBOLT, HEXAGON/CAP
-
157516317 SCREW, TORX NYLONSCREW, TORX NYLON
