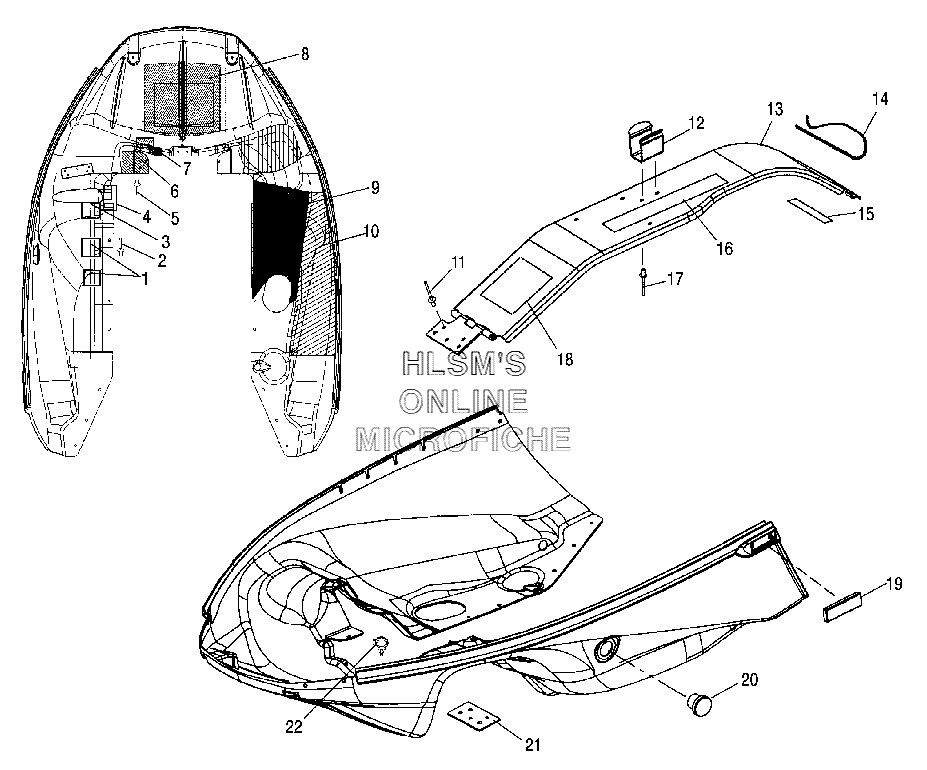

NOSEPAN ASSEMBLY #2 для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17670130 SPEED-CLIP-''U'' TYPESPEED-CLIP-''U'' TYPE
-
27621334 RIVETRIVET
-
37080963 RETAINER-''J''CLPRETAINER-''J''CLP
-
37621462 RIVETRIVET
-
45811948 FOIL-4.5X1.0FOIL-4.5X1.0
-
57621462 RIVETRIVET
-
65812020 FOIL, TAPEFOIL, TAPE
-
75810949 FOIL, TAPE, 1.5X6FOIL, TAPE, 1.5X6
-
85812036 FOIL, 10X10FOIL, 10X10
-
95812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
105812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
117621402 RIVET, POPRIVET, POP
-
125222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
131013069 GUARD ASSY, CLUTCHGUARD ASSY, CLUTCH
-
147080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
155812352 PAD-CLUTCH GUARDPAD-CLUTCH GUARD
-
167075350 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
177621429 RIVETRIVET
-
187170742 DECAL-TROUBLE SHOOTDECAL-TROUBLE SHOOT
-
192670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
205433926 PLUG, OBLONGPLUG, OBLONG
-
215211722 PLATE, BACKERPLATE, BACKER
-
224020139 CLIP, ROSEBUDCLIP, ROSEBUD
