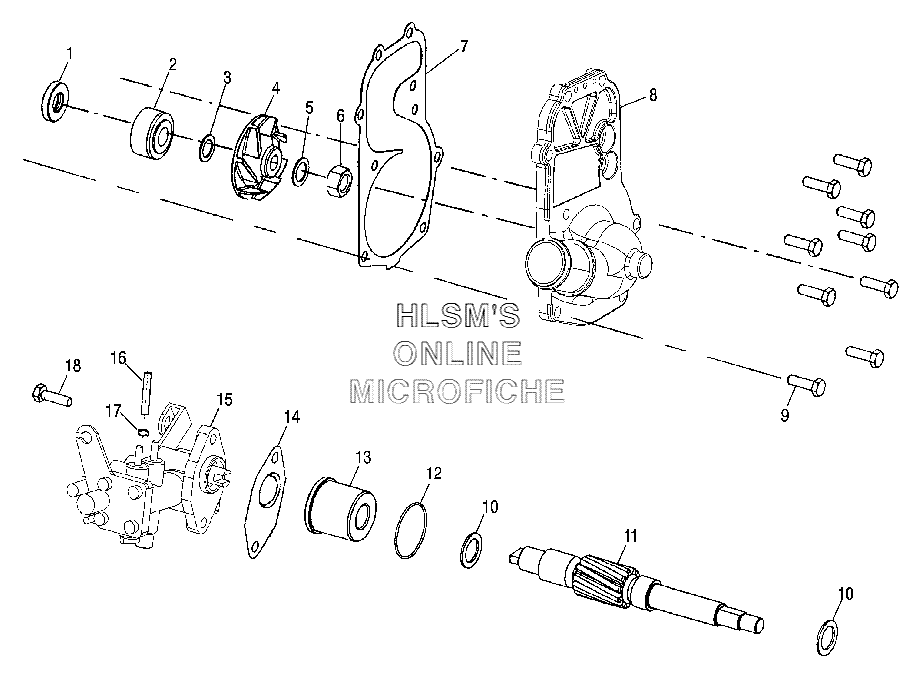

WATER PUMP/OIL PUMP для Polaris 600 Edge Touring (S06NT6ES) - 2006 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE SSEAL, TYPE S
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX,NUT, HEX,
-
75811601 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
85630920 COVER-WATER PUMP, HI FLOWCOVER-WATER PUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR-CROSS SHAFT (11 START)GEAR-CROSS SHAFT (11 START)
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFTBRNG, PUMP SHAFT
-
145811789 GASKETGASKET
-
152540117 OIL PUMP ASSYOIL PUMP ASSY
-
168450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
177080603 CLAMPCLAMP
