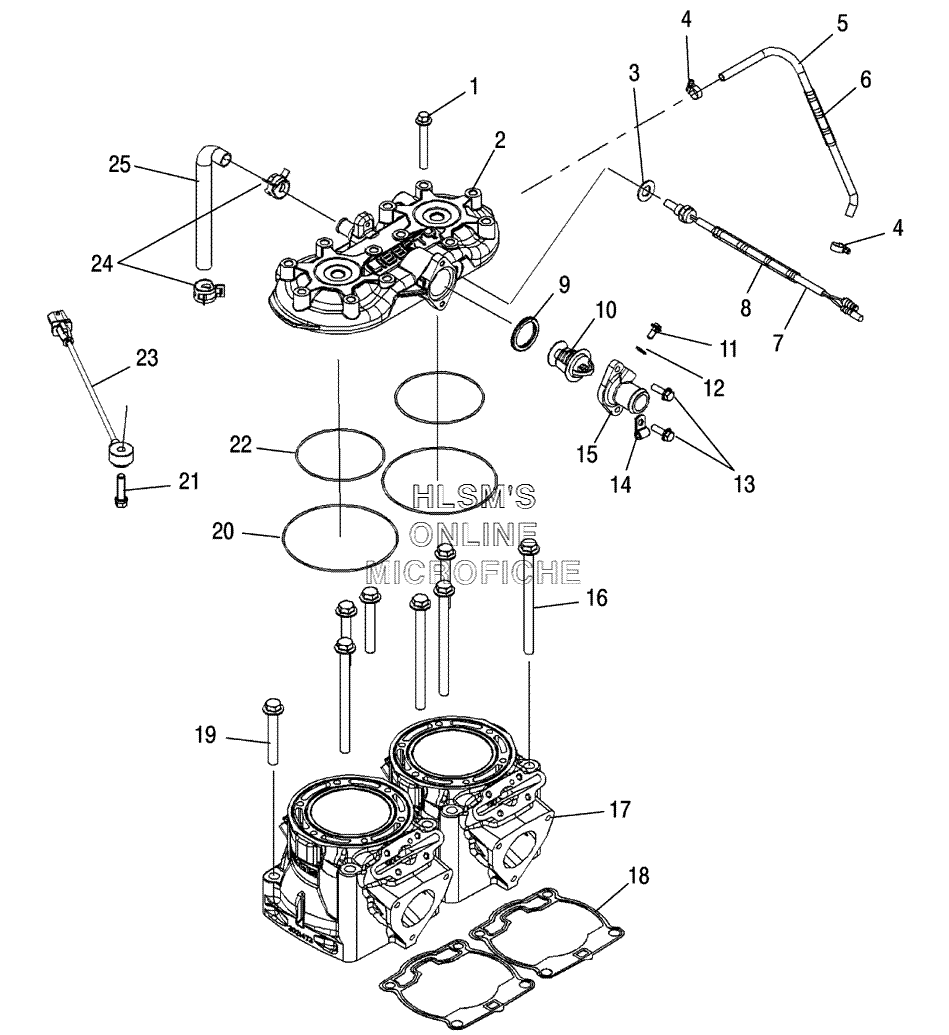

CYLINDER ASSEMBLY для Polaris 700 Fusion (S06MP7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17517533 SCREWSCREW
-
21203052-093 HEAD, CYLINDER ASSY (RED)HEAD, CYLINDER ASSY (RED)
-
37556357 WASHER, COPPERWASHER, COPPER
-
47080848 CLAMP, HOSECLAMP, HOSE
-
55412682 HOSE COOLANTHOSE COOLANT
-
68360052-30 TUBING CONVOLUTED (.500 ID) (30CM)TUBING CONVOLUTED (.500 ID) (30CM)
-
74010868 SENSOR WATER TEMPSENSOR WATER TEMP
-
88360062-15 CONDUIT FLEX, SLIT (1/2''HT 15CM)CONDUIT FLEX, SLIT (1/2''HT 15CM)
-
95411521 O RING, LIPSEALO RING, LIPSEAL
-
107052376 THERMOSTAT 50C, TBYS, ADHTHERMOSTAT 50C, TBYS, ADH
-
117517679 SCREWSCREW
-
127555998 WASHER, FLATWASHER, FLAT
-
137516822 SCREWSCREW
-
147081246 CLAMP WIRE/TUBE (.25 DIA)CLAMP WIRE/TUBE (.25 DIA)
-
155631394 COVER, THERMOSTATCOVER, THERMOSTAT
-
167518292 SCREWSCREW
-
173021562 CYLINDER (77.5MM)CYLINDER (77.5MM)
-
185812531 GASKET CYLINDER BASEGASKET CYLINDER BASE
-
197518091 SCREWSCREW
-
205412593 O RINGO RING
-
217517262 SCREWSCREW
-
225410932 O RINGO RING
-
232410369 SENSOR DETONATION BOSCHSENSOR DETONATION BOSCH
-
247081030 CLAMP BYPASS NORMA (#24-15)CLAMP BYPASS NORMA (#24-15)
-
255412362 HOSE BYPASSHOSE BYPASS
