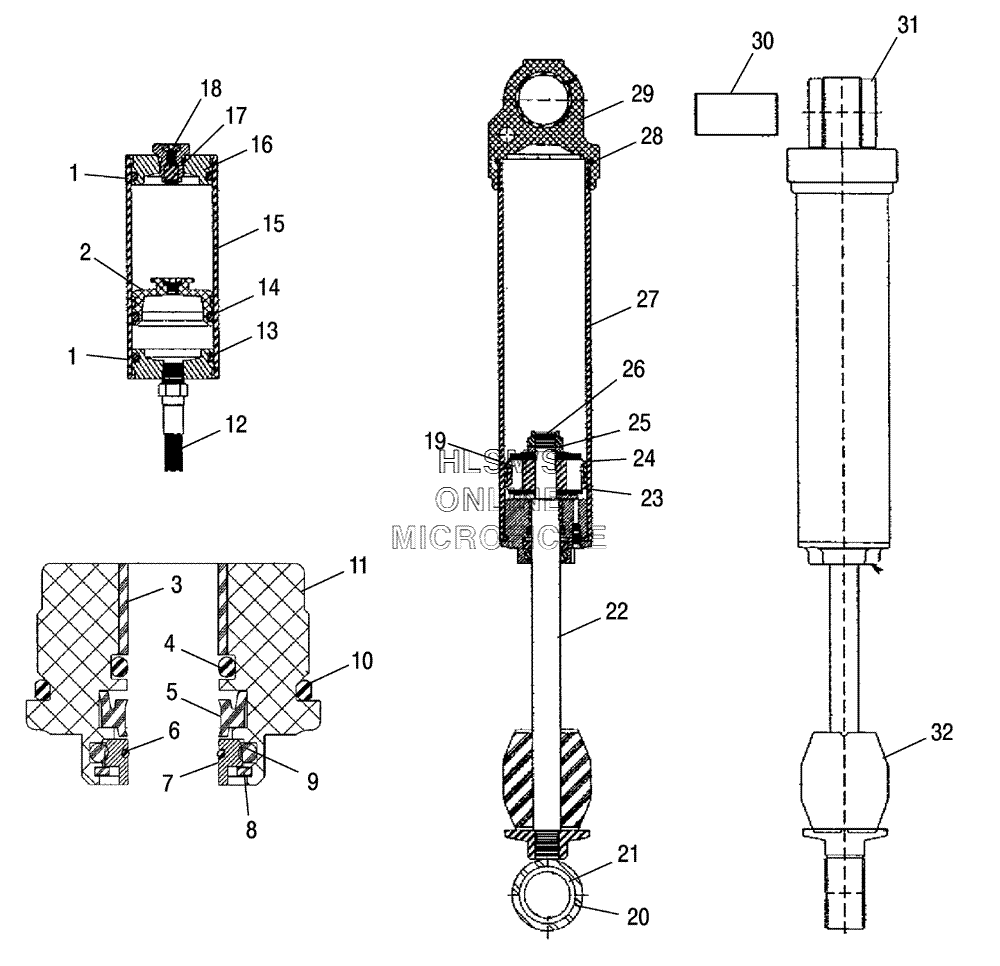

SUSPENSION - REAR TRACK SHOCK - M10 для Polaris 700 Fusion (S06MP7HS) - 2006 года выпуска
-
№АртикулНазвание
-
11500450 SEAL O RINGSEAL O RING
-
21500601 ASSY IFPASSY IFP
-
31500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
41500021 O RING INNERO RING INNER
-
51500266 U CUP URETHU CUP URETH
-
61500484 O RING (14MM IDX1 MM)O RING (14MM IDX1 MM)
-
71500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
81500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
91500483 O RING (.103X.73ID)O RING (.103X.73ID)
-
101500020 O RING (.103W 1.299ID)O RING (.103W 1.299ID)
-
111500545 COLLAR (INCL. 3 10)COLLAR (INCL. 3 10)
-
121500560 HOSEHOSE
-
131500118 O-RINGO-RING
-
141500003 O RING, ENDCAPO RING, ENDCAP
-
151500705 BODY RES, ALUMINUMBODY RES, ALUMINUM
-
161500114 O-RINGO-RING
-
171500023 O RING (OUTER)O RING (OUTER)
-
181500014 VALVE ASSY, AIRVALVE ASSY, AIR
-
191500740 PISTON (.055 BLEED)PISTON (.055 BLEED)
-
201500564 EYELETEYELET
-
211500444 BEARING RBCBEARING RBC
-
221500562 SHAFTSHAFT
-
231500017 PLATE, TOP OUTPLATE, TOP OUT
-
241500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
251500015 PLATE, BACKUPPLATE, BACKUP
-
261500016 NUT, LOCKNUT, LOCK
-
271500741 PISTONPISTON
-
281500108 O RING (.103W 1.549ID)O RING (.103W 1.549ID)
-
291500704 BODY CAP ASSYBODY CAP ASSY
-
301500310 SLEEVE (.56X.81X1.2)SLEEVE (.56X.81X1.2)
-
311500309 BUSHING (.35ILG) (.595TLG)BUSHING (.35ILG) (.595TLG)
-
325410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
-1500703 REBUILD KITREBUILD KIT
