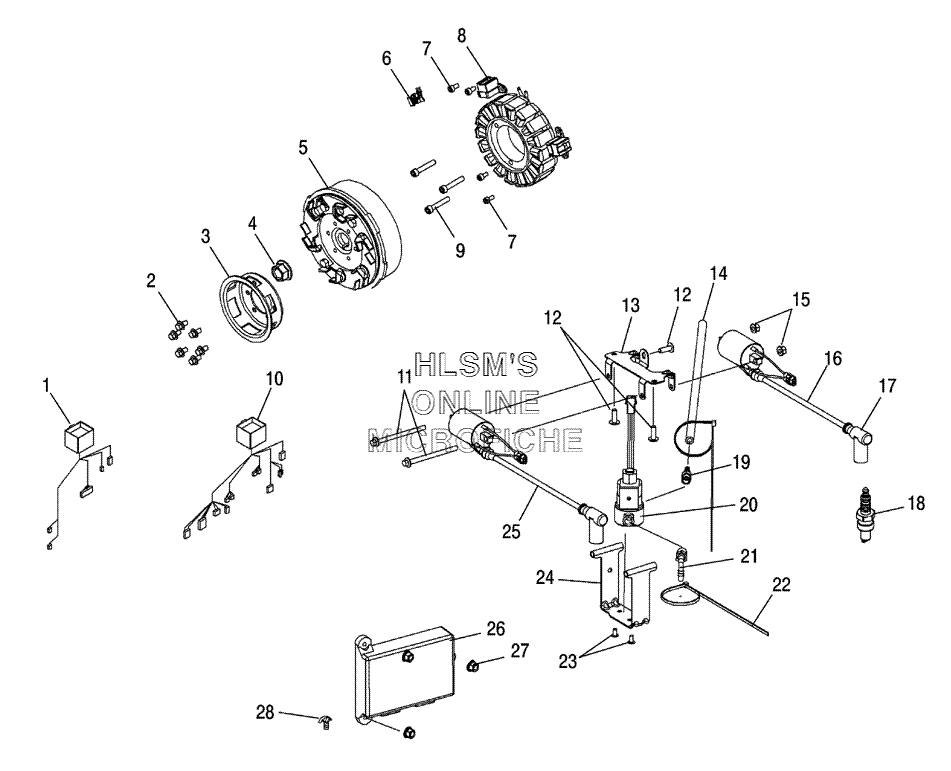

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 700 Touring (S06PT7HS) - 2006 года выпуска
-
№АртикулНазвание
-
14011337 HARNESS IGNITION, ENGINEHARNESS IGNITION, ENGINE
-
27517278 SCREWSCREW
-
33021618 PULLEY STARTER, RECOILPULLEY STARTER, RECOIL
-
47518299 NUT FLANGENUT FLANGE
-
54011211 FLYWHEELFLYWHEEL
-
65435505 SHIELD WIRESHIELD WIRE
-
77517847 SCREWSCREW
-
84011463 STATOR KOKSTATOR KOK
-
97517848 SCREWSCREW
-
104011336 HARNESS IGN, ENGINEHARNESS IGN, ENGINE
-
117518407 SCREW, FLANGESCREW, FLANGE
-
127515199 SCREWSCREW
-
135248548 BRKT ENGINE COILBRKT ENGINE COIL
-
148450040-600 LINE FUEL (600 CM.)LINE FUEL (600 CM.)
-
157547274 NUT FLANGE, NYLOKNUT FLANGE, NYLOK
-
164011104 COIL IGNITION, PTOCOIL IGNITION, PTO
-
174020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
183070190 SP.PLUG, CHAMPIONSP.PLUG, CHAMPION
-
197050001 FITTING (1/4'' NPT TO 1/4'') (BARB)FITTING (1/4'' NPT TO 1/4'') (BARB)
-
204011244 SOLENOIDSOLENOID
-
217050000 FITTING (1/4'' NPT TO 1/4'') (BARB90Ш)FITTING (1/4'' NPT TO 1/4'') (BARB90Ш)
-
227080138 CABLE TIECABLE TIE
-
237518321 BOLTBOLT
-
245248537 BRACKET EXHAUST, SOLENOIDBRACKET EXHAUST, SOLENOID
-
254011105 COIL IGNITION, MAGCOIL IGNITION, MAG
-
264011342 ENGINE CONTROL UNITENGINE CONTROL UNIT
-
277542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
287080965 MOUNT CABLE TIE (.25)MOUNT CABLE TIE (.25)
