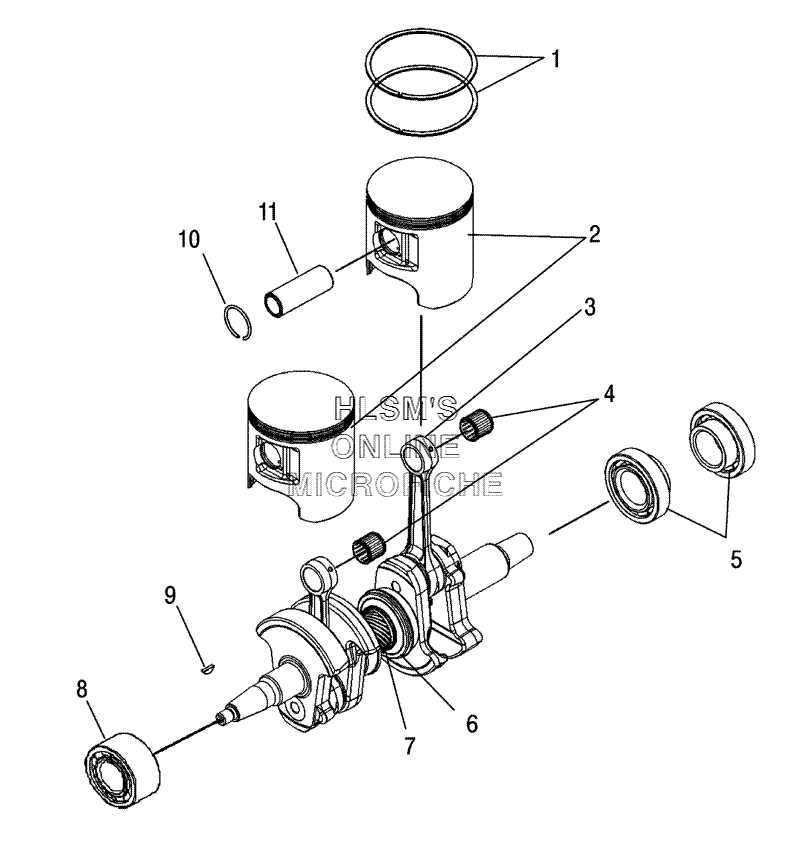

PISTON AND CRANKSHAFT для Polaris 700 Touring (S06PT7HS) - 2006 года выпуска
-
№АртикулНазвание
-
12203099 PISTON RINGS KITPISTON RINGS KIT
-
22203121 PISTON KIT (INCL. 1, 10, 11)PISTON KIT (INCL. 1, 10, 11)
-
32202952 CONNECTING ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)
-
43514357 BEARINGBEARING
-
53514500 BEARING, BALLBEARING, BALL
-
63514318 BEARING, BALLBEARING, BALL
-
73585503 BEARING, BALLBEARING, BALL
-
83514499 BEARING BALL, DBLROWBEARING BALL, DBLROW
-
97721117 KEY, WOODRUFFKEY, WOODRUFF
-
103021179 CIRCLIP, PISTON (22MMX1.6)CIRCLIP, PISTON (22MMX1.6)
-
-2203112 CRANKSHAFT KIT (INCL. 5 7)CRANKSHAFT KIT (INCL. 5 7)
