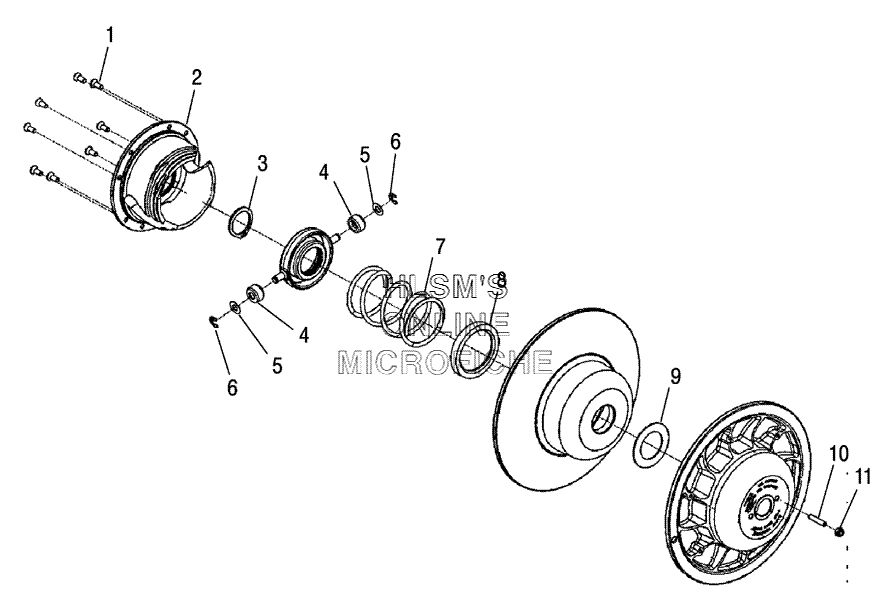

CLUTCH - DRIVEN для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска
-
№АртикулНазвание
-
13233996 SCREW CAP TORXSCREW CAP TORX
-
25135276 RAMP DRIVEN (64/42 .46)RAMP DRIVEN (64/42 .46)
-
37710522 RETAINING RING EXT 1.500RETAINING RING EXT 1.500
-
45434534 ROLLERROLLER
-
57556226 WASHER THRUSTWASHER THRUST
-
67710523 RETAININ, E-RING (E T.375)RETAININ, E-RING (E T.375)
-
77043058 SPRING DRIVEN CLUTCH (LEFT/RED/BLACK)SPRING DRIVEN CLUTCH (LEFT/RED/BLACK)
-
87556227 WASHER THRUSTWASHER THRUST
-
93234033 SPACER (1.640X3.125X.062)SPACER (1.640X3.125X.062)
-
103234228 SCREW SET HEXAGONSCREW SET HEXAGON
-
113233289 NUT, FLEXLOCKNUT, FLEXLOCK
-
-1322368 DRIVEN CLTCH ASSY, TEAM BASIC #131SP (INCL. 3 6, 8 11)DRIVEN CLTCH ASSY, TEAM BASIC #131SP (INCL. 3 6, 8 11)
