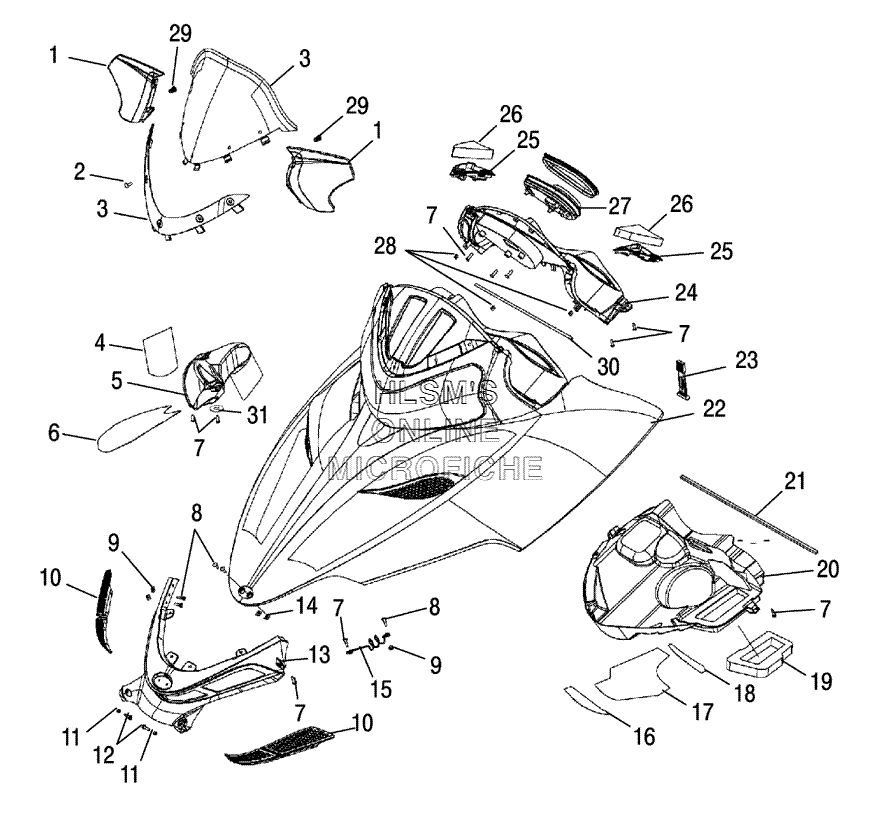

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска
-
№АртикулНазвание
-
15435900 SHIELD SIDE, SHORT (SMOKE/LEFT)SHIELD SIDE, SHORT (SMOKE/LEFT)
-
15435901 SHIELD SIDE, SHORT (SMOKE/RIGHT)SHIELD SIDE, SHORT (SMOKE/RIGHT)
-
27621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
35435967 WINDSHIELD MID, SB (SMOKE)WINDSHIELD MID, SB (SMOKE)
-
35435520 RETAINER WINDSHIELDRETAINER WINDSHIELD
-
45812758 DECALDECAL
-
52633221 BRAKE DUCT ASSY, 900 IQ (INCL. FOIL)BRAKE DUCT ASSY, 900 IQ (INCL. FOIL)
-
65812893 FOIL BRAKE DUCT, #1FOIL BRAKE DUCT, #1
-
77518577 SCREWSCREW
-
87518281 SCREWSCREW
-
97547288 NUT TABNUT TAB
-
105435848-070 SCREEN HINGE, HI TEMP (LEFT/BLACK)SCREEN HINGE, HI TEMP (LEFT/BLACK)
-
105435849-070 SCREEN HINGE, HI TEMP (RIGHT/BLACK)SCREEN HINGE, HI TEMP (RIGHT/BLACK)
-
115334429 BUSHINGBUSHING
-
127518285 SCREWSCREW
-
135435287-070 HINGE GRILL, HOOD (BLACK)HINGE GRILL, HOOD (BLACK)
-
147541925 NUT, NYLOKNUT, NYLOK
-
157081133 CABLE HOOD RETAINERCABLE HOOD RETAINER
-
165812796 FOIL HEADLIGHT ACCESS COVERFOIL HEADLIGHT ACCESS COVER
-
175812795 FOIL HEADLIGHT ACCESS COVERFOIL HEADLIGHT ACCESS COVER
-
185812797 FOIL HEADLIGHT ACCESS COVERFOIL HEADLIGHT ACCESS COVER
-
195812777 FOAM INTAKE COVERFOAM INTAKE COVER
-
202633044 HEADLIGHT ACCESS COVER ASSY (INCL.16 18)HEADLIGHT ACCESS COVER ASSY (INCL.16 18)
-
215812782 FOAM SEAL (35'')FOAM SEAL (35'')
-
222633020-293 HOOD ASSY (RED) (INCL. FOAM/FOIL)HOOD ASSY (RED) (INCL. FOAM/FOIL)
-
222633020-499 HOOD ASSY (SS BLUE METALLIC) (INCL. FOAM/FOIL)HOOD ASSY (SS BLUE METALLIC) (INCL. FOAM/FOIL)
-
235433150 STRAPSTRAP
-
245435789-070 POD INSTRUMENT (BLACK)POD INSTRUMENT (BLACK)
-
255435776 FILTER CARTRIDGE (LEFT)FILTER CARTRIDGE (LEFT)
-
255435777 FILTER CARTRIDGE (RIGHT)FILTER CARTRIDGE (RIGHT)
-
265812688 FILTER FOAMFILTER FOAM
-
272410375 GAUGE, MULTI FUNCTION ASSYGAUGE, MULTI FUNCTION ASSY
-
274011149 BATTERY CLOCKBATTERY CLOCK
-
287670112 NUT, U TYPENUT, U TYPE
-
297670101 CLIP, X MAS TREECLIP, X MAS TREE
-
305521697-350 SEAL BULB (350CM)SEAL BULB (350CM)
-
317517602 SCREWSCREW
