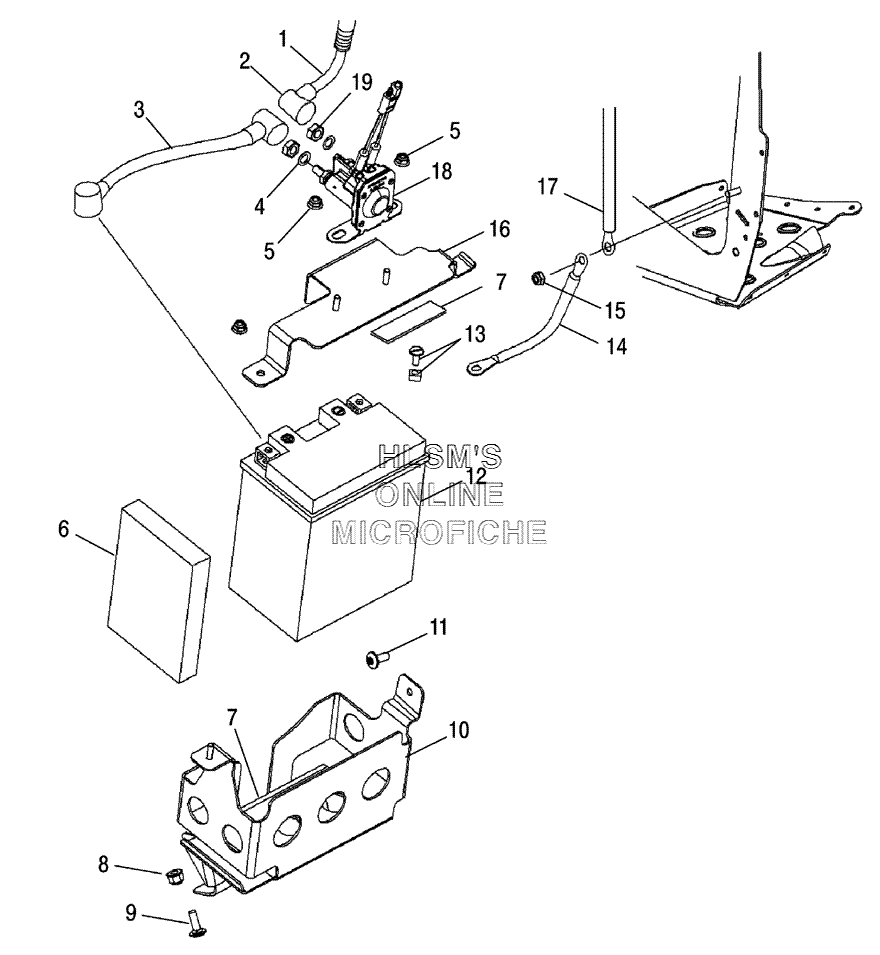

BATTERY BOX для Polaris FS Classic (S06PD7ES) - 2006 года выпуска
-
№АртикулНазвание
-
10452961 STARTER LEAD SNOWSTARTER LEAD SNOW
-
25410346 INSUL.CABLE SOLENOIDINSUL.CABLE SOLENOID
-
34011097 CABLE BATTERY/SOLENOID (7'')CABLE BATTERY/SOLENOID (7'')
-
47552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57518287 NUT NYLOK INSERTNUT NYLOK INSERT
-
65812901 SPACER BATTERY, FOAMSPACER BATTERY, FOAM
-
75810290 PAD, BATTERYPAD, BATTERY
-
87542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
97515203 BOLTBOLT
-
101015024 BATTERY BOX (LOWER)BATTERY BOX (LOWER)
-
117515148 SCREWSCREW
-
124010466 BATTERYBATTERY
-
132202099 BATTERY BOLT KIT (30AH)BATTERY BOLT KIT (30AH)
-
144011169 CABLE GROUND (6'')CABLE GROUND (6'')
-
157542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
161015168 BATTERY BOX ASSY (UPPER)BATTERY BOX ASSY (UPPER)
-
174011094 CABLE BATTERY/GROUND (BLACK/31.5'')CABLE BATTERY/GROUND (BLACK/31.5'')
-
184011334 SWITCH MAGNETICSWITCH MAGNETIC
-
197542105 NUT HEXAGONNUT HEXAGON
