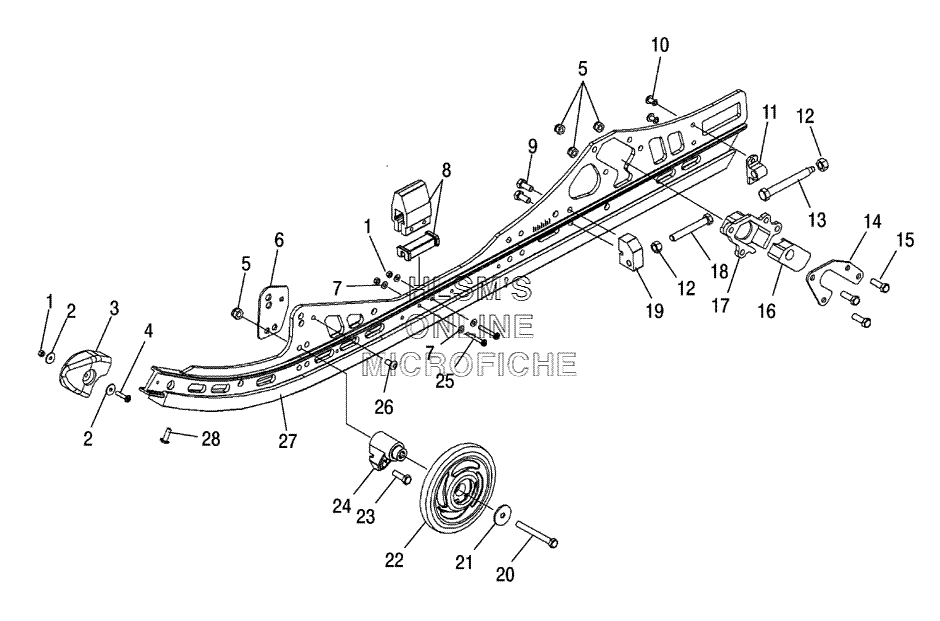

RAIL ASSEMBLY для Polaris FS Classic (S06PD7ES) - 2006 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOKNUT, NYLOK
-
27555792 WASHERWASHER
-
35435527 CAP RAIL TIP, UHMWCAP RAIL TIP, UHMW
-
47518335 BOLTBOLT
-
57542324 NUT, NYLOKNUT, NYLOK
-
65249235 PLATE RAIL SUPPORTPLATE RAIL SUPPORT
-
77555783 WASHER, FLATWASHER, FLAT
-
85412336 BUMPER TALLBUMPER TALL
-
85432946 LINER, BUMPERLINER, BUMPER
-
97512371 BOLT,BOLT,
-
107621501 RIVETRIVET
-
115130530 BLOCK IDLER BOLT ADJUSTBLOCK IDLER BOLT ADJUST
-
127542404 NUTNUT
-
137517227 SCREWSCREW
-
145245045 PLATE COUPLER BLOCKPLATE COUPLER BLOCK
-
157512310 SCREWSCREW
-
165434885 BLOCK SLIDER, LONG, ETS (LEFT)BLOCK SLIDER, LONG, ETS (LEFT)
-
165434886 BLOCK SLIDER, LONG, ETS (RIGHT)BLOCK SLIDER, LONG, ETS (RIGHT)
-
175631188 GUIDE SLIDER, CAST (LEFT)GUIDE SLIDER, CAST (LEFT)
-
175631189 GUIDE SLIDER, CAST (RIGHT)GUIDE SLIDER, CAST (RIGHT)
-
187515511 SCREWSCREW
-
195134502 BLOCK SHOCK PIVOTBLOCK SHOCK PIVOT
-
207515346 SCREWSCREW
-
217556179 WASHER SPRINGWASHER SPRING
-
221590387-244 WHEEL, SCRL, ASSY (5.62) (SILVER)WHEEL, SCRL, ASSY (5.62) (SILVER)
-
227710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
223514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
237515317 BOLTBOLT
-
245631446 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
257510504 SCREWSCREW
-
267661845 RIVETRIVET
-
275521632 SLIDER, SERVICE BASIC (.45/61'')SLIDER, SERVICE BASIC (.45/61'')
-
287515199 SCREWSCREW
-
-1541994 RAIL, M10 128, BASIC ASSY (LEFT) (INCL. 1 4, 8, 10, 11, 25)RAIL, M10 128, BASIC ASSY (LEFT) (INCL. 1 4, 8, 10, 11, 25)
-
-1541995 RAIL, M10 128, BASIC ASSY (RIGHT) (INCL. 1 4, 8, 10, 11, 25)RAIL, M10 128, BASIC ASSY (RIGHT) (INCL. 1 4, 8, 10, 11, 25)
