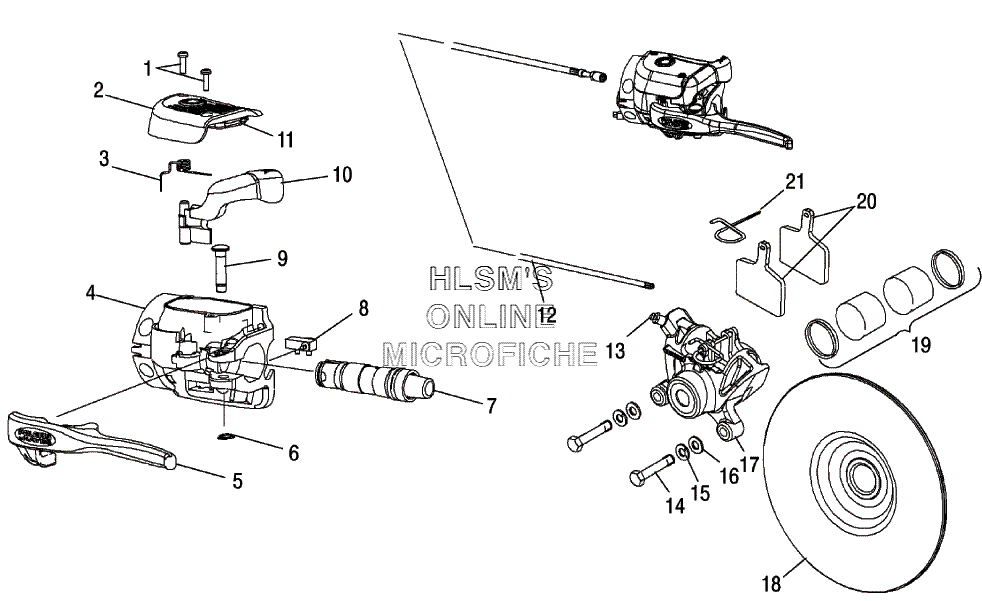

BRAKE ASSEMBLY для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KITCOVER SCREW KIT
-
22202837 COVER ASSY KIT (INCL. 1, 11)COVER ASSY KIT (INCL. 1, 11)
-
32201250 PARK LEVER SPRING KITPARK LEVER SPRING KIT
-
42202784 RESERVOIR, KIT (INCL. 6, 9)RESERVOIR, KIT (INCL. 6, 9)
-
52201943 LEVER, 3 NOTCH/PIN/RING KIT (INCL. 6, 9)LEVER, 3 NOTCH/PIN/RING KIT (INCL. 6, 9)
-
62201945 SNAP RING KITSNAP RING KIT
-
72202783 5/8" CARTRIDGE KIT5/8" CARTRIDGE KIT
-
82202786 STOPLIGHT SWITCH KITSTOPLIGHT SWITCH KIT
-
92201946 PIVOT PIN, ALUMINUM W/SNAP RING KIT (INCL. 6)PIVOT PIN, ALUMINUM W/SNAP RING KIT (INCL. 6)
-
102201251 PARK LEVER AND SPRING KITPARK LEVER AND SPRING KIT
-
122202787 HOSE KITHOSE KIT
-
132202205 BLEEDER FITTING KITBLEEDER FITTING KIT
-
147515534 SCREWSCREW
-
157552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167556160 WASHERWASHER
-
172202728 BRAKE CALIPER AIR ASSY KITBRAKE CALIPER AIR ASSY KIT
-
182202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
192202207 PISTON/SEAL KITPISTON/SEAL KIT
-
192202204 SEAL KITSEAL KIT
-
202202727 BRAKE PAD, KIT TYPE 94 (INCL. 21)BRAKE PAD, KIT TYPE 94 (INCL. 21)
-
212202206 PIN RETAINING KITPIN RETAINING KIT
-
212202785 FULL ASSY MASTER CYLINDER KIT (INCL. 1-7)FULL ASSY MASTER CYLINDER KIT (INCL. 1-7)
