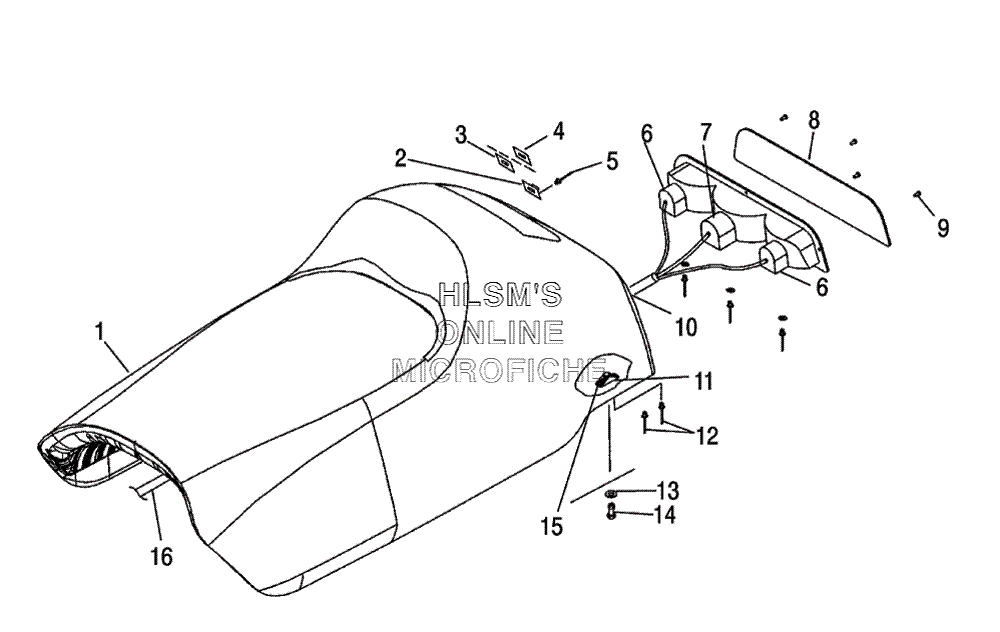

SEAT W/ TAILLIGHT для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска
-
№АртикулНазвание
-
12683520 SEAT, ASSY (BLACK)SEAT, ASSY (BLACK)
-
12683521 COVER, ASSY (BLACK)COVER, ASSY (BLACK)
-
27080548 TWISTLOCK, RELATCH 1" W/HOLETWISTLOCK, RELATCH 1" W/HOLE
-
37080550 GROMMET RELATCH, 1" (BOTTOM)GROMMET RELATCH, 1" (BOTTOM)
-
47080549 GROMMET RELATCH, 1" (TOP)GROMMET RELATCH, 1" (TOP)
-
57621337 RIVETRIVET
-
64030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
74030045 BULBBULB
-
85430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
97511840 SCREWSCREW
-
105433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
117555727 WASHERWASHER
-
127621319 RIVETRIVET
-
137558301 WASHER, FLATWASHER, FLAT
-
147517219 SCREWSCREW
-
155631194 NUT SEATNUT SEAT
-
162460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
