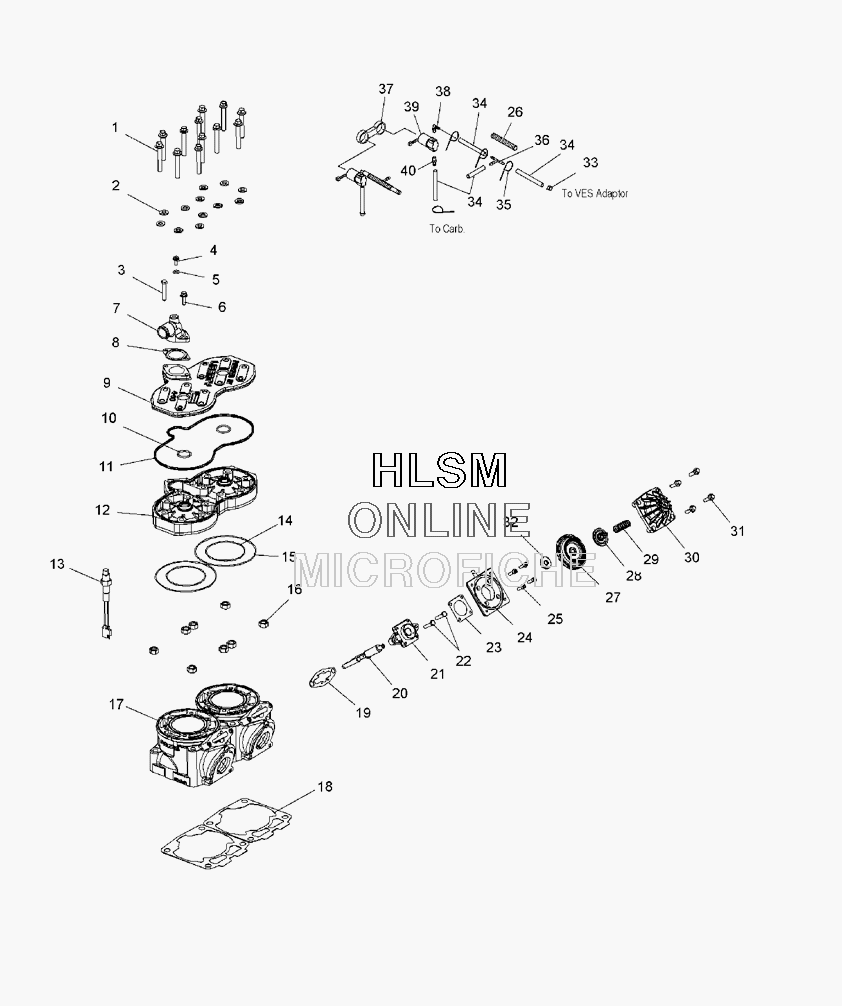

CYLINDER ASSEMBLY для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска

-
№АртикулНазвание
-
17517281 SCREWSCREW
-
27556082 WASHERWASHER
-
37516818 SCREWSCREW
-
47517679 SCREW, M6X1.0 X 13, SL/HX/FL-ZSCREW, M6X1.0 X 13, SL/HX/FL-Z
-
57555998 WASHER, FLATWASHER, FLAT
-
67516822 SCREWSCREW
-
75134756 COVER-THERMOSTAT M6 BLEED MACHCOVER-THERMOSTAT M6 BLEED MACH
-
85830159 GASKET, T'STAT.COVERGASKET, T'STAT.COVER
-
95631539-329 COVER-HEAD, 66MM SNO 440 LBTYCOVER-HEAD, 66MM SNO 440 LBTY
-
105411411 O-RINGO-RING
-
115411465 SEALSEAL
-
123021701 HEAD-CYLINDER, 66MM 440-05 (HIGH OCTANE)HEAD-CYLINDER, 66MM 440-05 (HIGH OCTANE)
-
122202188 KIT-92 OCTANE CYLINDER HEAD (INCL. 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)KIT-92 OCTANE CYLINDER HEAD (INCL. 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)
-
134010398 SENSOR-THERMISTER, ESX8477ASENSOR-THERMISTER, ESX8477A
-
145411199 O-RINGO-RING
-
155411359 O-RINGO-RING
-
167547013 NUTNUT
-
173021604 CYLINDERCYLINDER
-
185812494 GASKET-CYLINDER BASE, WEBGASKET-CYLINDER BASE, WEB
-
185813069 Gasket, Cylinder Base, .006Gasket, Cylinder Base, .006
-
185813070 GASKET-CYL BASE, 440, .010''GASKET-CYL BASE, 440, .010''
-
185813071 GASKET-CYL BASE, 440, .020''GASKET-CYL BASE, 440, .020''
-
191203170 ASM-GUILLOTINE, 3.5, 44-01ASM-GUILLOTINE, 3.5, 44-01
-
205812087 GASKETGASKET
-
211201919 ASM-EV 3.5 HSNG W/BUSH H.DOWELASM-EV 3.5 HSNG W/BUSH H.DOWEL
-
227516823 SCREWSCREW
-
235433375 GASKET, HOUSINGGASKET, HOUSING
-
241202037 ASM, ADAPTERASM, ADAPTER
-
257517314 SCREWSCREW
-
268360052-30 TUBING-CONVOLUTED, .500 ID, 30CMTUBING-CONVOLUTED, .500 ID, 30CM
-
275412733 BELLOWS-EXH, RIBSBELLOWS-EXH, RIBS
-
285631662 CAP/NUT, BELLOWS-HC ANODIZEDCAP/NUT, BELLOWS-HC ANODIZED
-
297041786-01 SPRNG, CMP, RD/WHTSPRNG, CMP, RD/WHT
-
301202640 ASM-HOUSING W/BUSHINGASM-HOUSING W/BUSHING
-
317516820 SCREWSCREW
-
325135163 WASHER-BELLOWS, EXH VALVE, DOMWASHER-BELLOWS, EXH VALVE, DOM
-
337080003 CLAMP, HOSECLAMP, HOSE
-
348450040-600 LINE FUEL, 1/4 ID(600 CM.)LINE FUEL, 1/4 ID(600 CM.)
-
357080138 CABLE TIECABLE TIE
-
367052075 FITTING, TEEFITTING, TEE
-
375412092 RETAINER-SOLENOIDRETAINER-SOLENOID
-
387052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
394010305 CONTROL, VALUE-EV SOLENOIDCONTROL, VALUE-EV SOLENOID
-
407052099 FITTINGFITTING
