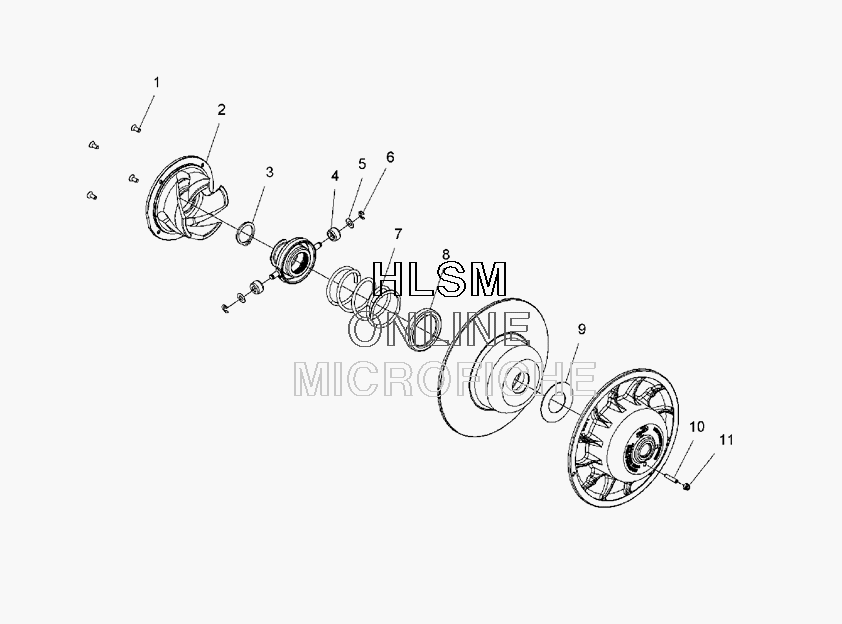

CLUTCH - DRIVEN для Polaris 700 CFI DRAGON AND EURO (S07PC7JS/JE) - 2007 года выпуска
-
№АртикулНазвание
-
1322643 ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-6, 8-11)ASM-DRVN CLTCH, TEAM, BSC, LWTSPL (INCL. 3-6, 8-11)
-
13234381 SCREW-CAP TORX SFCH1/4-28X.625SCREW-CAP TORX SFCH1/4-28X.625
-
25135772 RAMP-DRVN, (66/44/46) ER, LWTRAMP-DRVN, (66/44/46) ER, LWT
-
37710583 RET.RING-RET.RING-
-
45434534 ROLLERROLLER
-
57556226 WASHER-THRUSTWASHER-THRUST
-
67710523 RET.E-RING-E T.375RET.E-RING-E T.375
-
77043058 SPRING-CLUTCH (90.9#) P2SPRING-CLUTCH (90.9#) P2
-
87556227 WASHER-THRUSTWASHER-THRUST
-
97556370 WASHERWASHER
-
103234228 SCREW-SET HEX SKT 1/4-20X1.25SCREW-SET HEX SKT 1/4-20X1.25
-
117542103 NUT, FLEXLOCNUT, FLEXLOC
Все узлы модели:
- AIR BOX ASSEMBLY
- BRAKE ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FOOTRESTS
- CHASSIS - HOOP
- CHASSIS - REAR
- CLUTCH - DRIVE
- • CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STATOR - FLYWHEEL
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK IFS
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD
- WIRING HARNESS
