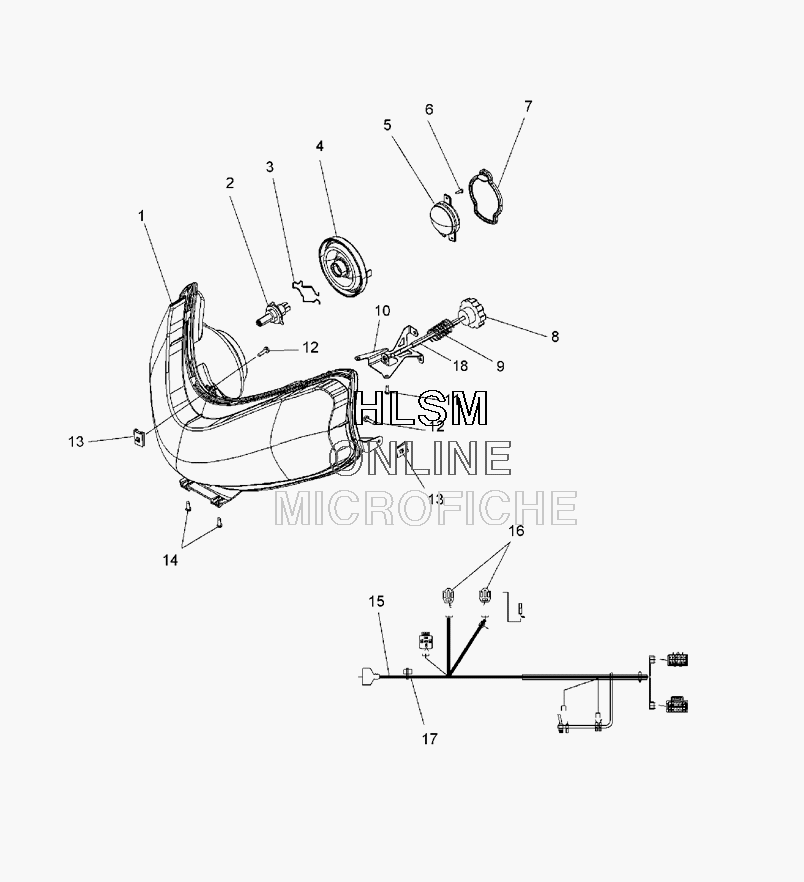

HEADLIGHT ASSEMBLY для Polaris 700 CFI DRAGON AND EURO (S07PC7JS/JE) - 2007 года выпуска
-
№АртикулНазвание
-
12410397 ASM-HEADLIGHTASM-HEADLIGHT
-
22870448 BULB,QUARTZ.H/L H4,60/55WBULB,QUARTZ.H/L H4,60/55W
-
35247526 BAIL-WIRE,044036BAIL-WIRE,044036
-
45412674 BOOT-H-4,LARGE,044024BOOT-H-4,LARGE,044024
-
55435560 MIRRORMIRROR
-
67518350 SCREW-4.85-2.85X15,5953681SCREW-4.85-2.85X15,5953681
-
75412611 COVER-DOME,044017COVER-DOME,044017
-
85435247 KNOB-044031KNOB-044031
-
97042323 SPRING-COMPRESSIONSPRING-COMPRESSION
-
105248391 RETAINER-HEADLIGHT ADJ.RETAINER-HEADLIGHT ADJ.
-
117512026 SCREWSCREW
-
127512068 SCREWSCREW
-
137670112 NUT-#10,U-TYPE,A (.065-.087)NUT-#10,U-TYPE,A (.065-.087)
-
147518577 SCR-10X 5/8 TX PN PLST-243SCR-10X 5/8 TX PN PLST-243
-
152410771 HARNESS-HEADLIGHTHARNESS-HEADLIGHT
-
164020052 DIODESDIODES
-
174011149 BATTERY-CLOCK,3V CR2032BATTERY-CLOCK,3V CR2032
-
185136116 ROD-ADJ HDLGHTROD-ADJ HDLGHT
