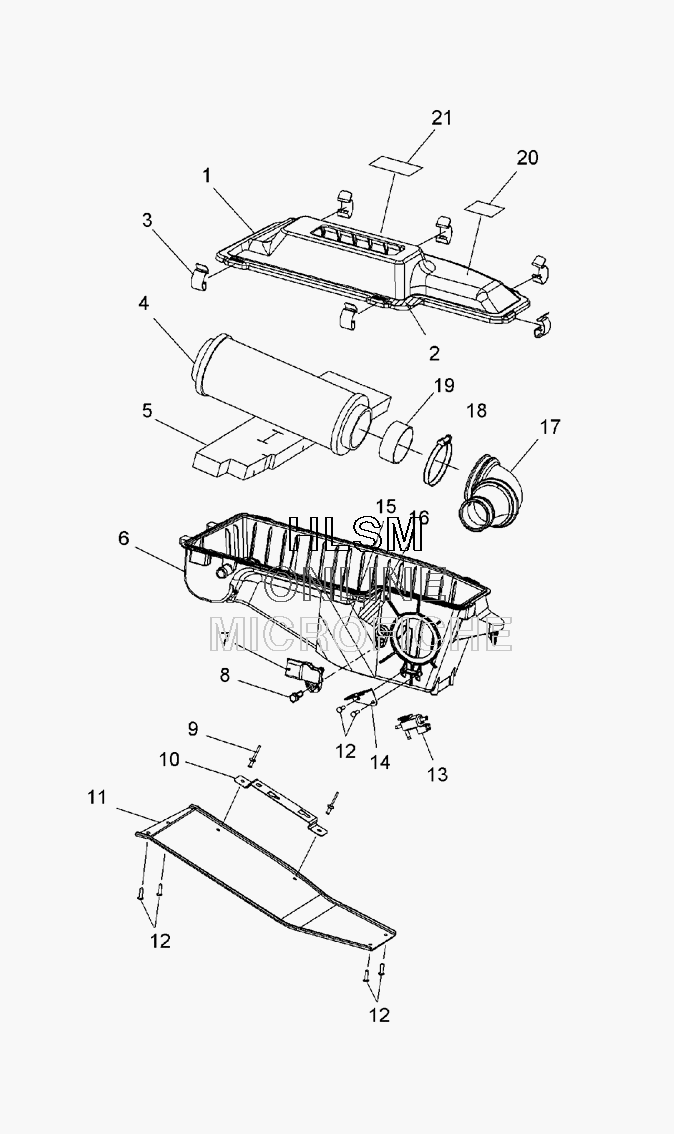

AIR INTAKE SYSTEM для Polaris FST IQ SWITCHBACK (S07PS7FS) - 2007 года выпуска
-
№АртикулНазвание
-
15435653 PLENUM-INTAKE, UPPER, HOPLENUM-INTAKE, UPPER, HO
-
25813005 FOIL-PLENUM, UPPERFOIL-PLENUM, UPPER
-
37670117 CLIPCLIP
-
45812801 FILTER-PLENUM, HOFILTER-PLENUM, HO
-
55812950 FOAM-AIR BOX INTERNALFOAM-AIR BOX INTERNAL
-
65435592 PLENUM-INTAKE, LOWER FSTPLENUM-INTAKE, LOWER FST
-
72410422 SENSOR-T MAPSENSOR-T MAP
-
87512095 SCREWSCREW
-
97621432 RIVET, 3/16X.402RIVET, 3/16X.402
-
105248706 MOUNT-FUSE BOXMOUNT-FUSE BOX
-
115249752 REINFORCEMENT-PLENUM, FS/FSTREINFORCEMENT-PLENUM, FS/FST
-
127512026 SCREWSCREW
-
134011285 VALVE, ELECTRONIC BOOST CONTROLVALVE, ELECTRONIC BOOST CONTROL
-
145249291 BRKT-MNT, WASTEGATE VALVEBRKT-MNT, WASTEGATE VALVE
-
155813007 FABRIC-PLENUM, LOWERFABRIC-PLENUM, LOWER
-
165813006 FOIL-PLENUM, LOWERFOIL-PLENUM, LOWER
-
175412829 CONNECTOR-PLENUM/TURBOCONNECTOR-PLENUM/TURBO
-
187080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
195334750 SLEEVE-FILTER/CONNECTOR INNERSLEEVE-FILTER/CONNECTOR INNER
-
207173902 DECALDECAL
-
217172672 DECAL-ENGINE AND CLUTCHDECAL-ENGINE AND CLUTCH
