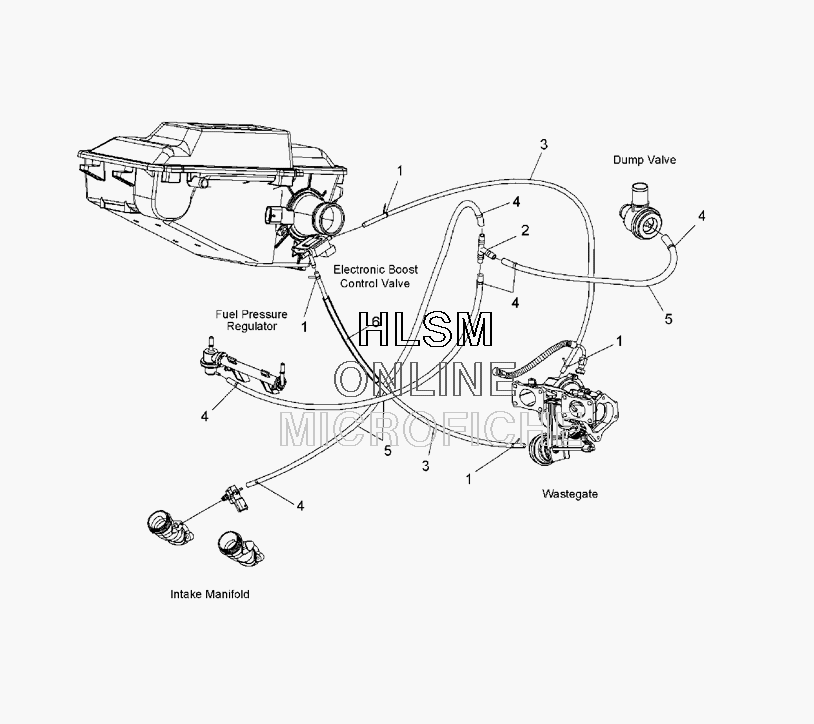

REFERENCE HOSES для Polaris FST IQ SWITCHBACK (S07PS7FS) - 2007 года выпуска
-
№АртикулНазвание
-
17080138 CABLE TIECABLE TIE
-
27052398 FITTING-T, 5/32, NYLONFITTING-T, 5/32, NYLON
-
38450113-153 HOSE-3/16 EPDM, 153 CMHOSE-3/16 EPDM, 153 CM
-
47080603 CLAMPCLAMP
-
58450112-153 HOSE-5/32 EPDM, 153 CM (SVC)HOSE-5/32 EPDM, 153 CM (SVC)
-
65521746-150 WRAP-WEAR RST, SVC, 1/2'', 150CMWRAP-WEAR RST, SVC, 1/2'', 150CM
Все узлы модели:
- AIR INTAKE SYSTEM
- ALTERNATOR
- BATTERY BOX
- BRAKE ASSEMBLY
- CAM CHAIN W/ TENSIONERS
- CHASSIS - FRONT
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLANT - INTERNAL
- COOLANT RAIL
- COOLING SYSTEM
- CRANKCASE AND CYLINDER ASSEMBLY
- CRANKSHAFT AND BALANCE SHAFT
- DECALS
- DRIVE GEAR W/ PULLEY
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ECU MOUNTING
- ELECTRICAL - SENSORS AND SWITCHES
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL RAIL
- FUEL SYSTEM
- GEARCASE ASSEMBLY
- GEARCASE COVER
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- IGNITION COILS
- MOUNTING - L.H.
- MOUNTING - R.H. AND FRONT
- OIL COOLING SYSTEM
- OIL FILTER
- OIL PUMP ASSEMBLY
- OIL SUMP
- PISTON W/ BEARING
- • REFERENCE HOSES
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING LINKAGE
- STEERING POST - HOOP
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK (7043142)
- SUSPENSION - IFS SHOCK (7043141)
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK (7043246)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SWAY BAR
- THROTTLE BODY W/ INTAKE MANIFOLD
- TOOL KIT
- TURBO
- VALVE COVER
- VALVE TRAIN
- VALVES
- WATER PUMP
- WINDSHIELD
- WIRE HARNESS - MAIN HOOD
- WIRE HARNESS KIT
