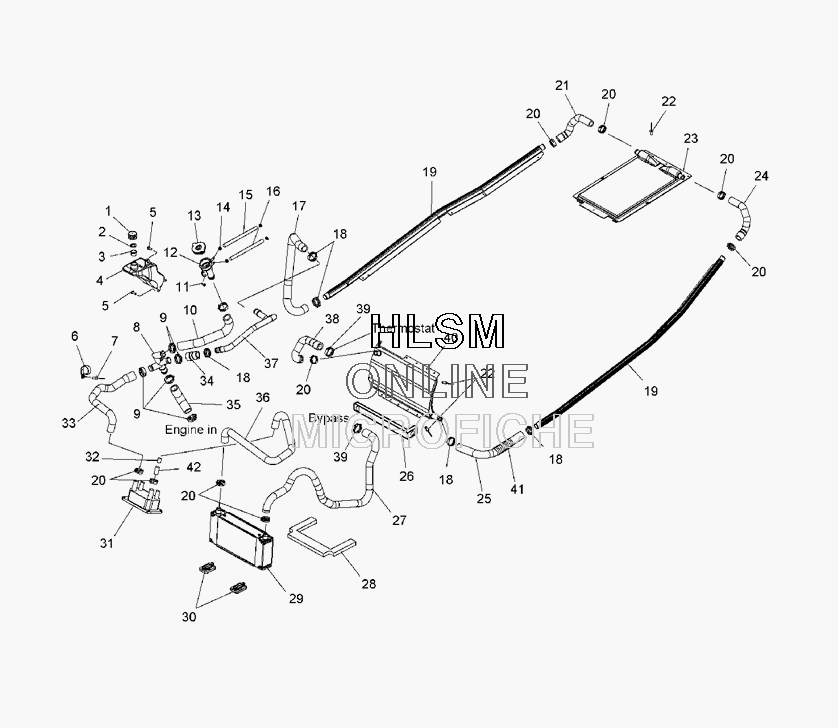

COOLING SYSTEM для Polaris FST LQ LX EURO (S07PD7FE) - 2007 года выпуска
-
№АртикулНазвание
-
15430743 CAP, OVERFLOWCAP, OVERFLOW
-
25810279 GASKETGASKET
-
35433774 CAP, PLUG9X(GRN), FLEX TEMPCAP, PLUG9X(GRN), FLEX TEMP
-
45436215 BOTTLE-COOLANT, FS/FSTBOTTLE-COOLANT, FS/FST
-
57512208 SCREWSCREW
-
67080807 CLAMP-HOSECLAMP-HOSE
-
77621467 RIVET, BLINDRIVET, BLIND
-
85436228 MANIFOLD-COOLANT RETURNMANIFOLD-COOLANT RETURN
-
97080844 CLAMP, SPRINGBAND 35/12, BLACKCLAMP, SPRINGBAND 35/12, BLACK
-
105412853 HOSE-FILLER/MANIFOLDHOSE-FILLER/MANIFOLD
-
117512095 SCREWSCREW
-
125435196 FILLER-NECK, REMOTE, COOLANT, 2FITFILLER-NECK, REMOTE, COOLANT, 2FIT
-
131240044 CAP-PRESSURE, 13 PSICAP-PRESSURE, 13 PSI
-
147080307 CLAMP, HOSECLAMP, HOSE
-
158450115-40 HOSE-HIGH TEMP, 0.25'' I.D.40CMHOSE-HIGH TEMP, 0.25'' I.D.40CM
-
168450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
175412851 HOSE-GRIPPER/TUBEHOSE-GRIPPER/TUBE
-
187080843 CLAMP, SPRINGBAND 32/12CLAMP, SPRINGBAND 32/12
-
195135258 EXCHANGER, COOLER, LEFT HANDEXCHANGER, COOLER, LEFT HAND
-
195135259 EXCHANGER, COOLER, RIGHT HANDEXCHANGER, COOLER, RIGHT HAND
-
207080842 CLAMP, SPRINGBAND 29/12, BLACKCLAMP, SPRINGBAND 29/12, BLACK
-
215412773 HOSE-GRIPPER/REAR COOLER, RIGHT HAND, CRHOSE-GRIPPER/REAR COOLER, RIGHT HAND, CR
-
227661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
231240267 WELD-REAR COOLERWELD-REAR COOLER
-
245412772 HOSE-GRIPPER/REAR COOLER, LEFT HAND, CRHOSE-GRIPPER/REAR COOLER, LEFT HAND, CR
-
255412766 HOSE-CNTR COOLER/GRIPPER, LEFT HAND, CRHOSE-CNTR COOLER/GRIPPER, LEFT HAND, CR
-
265812845 SEAL-FRONT CLOSEOFF COOLERSEAL-FRONT CLOSEOFF COOLER
-
275412783 HOSE-ENGINE OUT/RADIATORHOSE-ENGINE OUT/RADIATOR
-
285812496 MOUNT-RADIATOR, FOAMMOUNT-RADIATOR, FOAM
-
291240149 RADIATOR ASM.RADIATOR ASM.
-
305412513 MOUNT-RADIATOR, RUBBERMOUNT-RADIATOR, RUBBER
-
311240312 COOLER-OIL, 6 PLT, W BYPASS FS/TCOOLER-OIL, 6 PLT, W BYPASS FS/T
-
325135328 RESTRICTOR-COOLANT, FS/TRESTRICTOR-COOLANT, FS/T
-
335412786 HOSE-OIL CLR OUT/COOLANT BTLEHOSE-OIL CLR OUT/COOLANT BTLE
-
345412852 CONNECTOR-TUBE/MANIFOLD COOLNTCONNECTOR-TUBE/MANIFOLD COOLNT
-
355412782 HOSE-MANIFOLD/ENGINE INHOSE-MANIFOLD/ENGINE IN
-
365412784 HOSE-RADIATOR/OIL COOLER INHOSE-RADIATOR/OIL COOLER IN
-
375334771 TUBE-GRIPPER/MANIFOLDTUBE-GRIPPER/MANIFOLD
-
385412984 HOSE-ENG OUT/CENTER COOLERHOSE-ENG OUT/CENTER COOLER
-
397081192 CLAMP-HOSE (WORM DR) 25-40MM (WORM DRIVE)CLAMP-HOSE (WORM DR) 25-40MM (WORM DRIVE)
-
402520575 WELD-COOLER, BULKHEADWELD-COOLER, BULKHEAD
-
415521287-15 HOSEHOSE
-
425135769 SLEEVE-OIL COOLERSLEEVE-OIL COOLER
