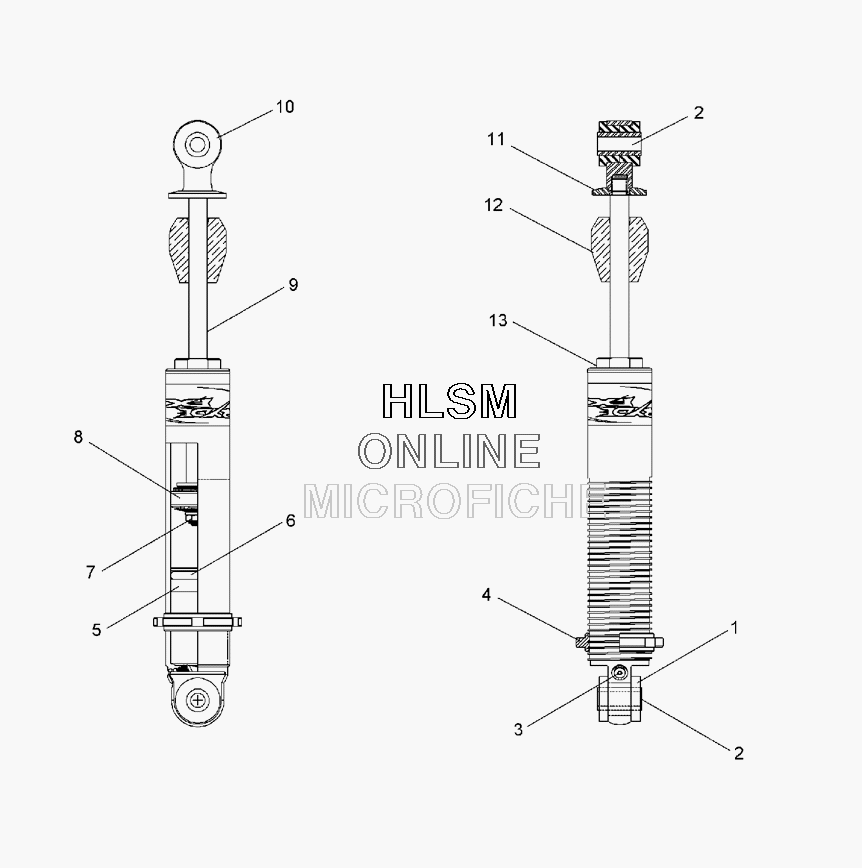

SUSPENSION - IFS SHOCK (7043245) для Polaris FST LQ LX EURO (S07PD7FE) - 2007 года выпуска
-
№АртикулНазвание
-
7043245 SHOCK-IFS, ALUM W/IFP 11.8X18.0SHOCK-IFS, ALUM W/IFP 11.8X18.0
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVE-.38''IDX.63''ODX1.18 PMSLEEVE-.38''IDX.63''ODX1.18 PM
-
31700184 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
31700055 VALVE SCREWVALVE SCREW
-
41700237 NUT, SPRING RET.NUT, SPRING RET.
-
51700233 IFP, PLASTICIFP, PLASTIC
-
61700048 IFP-O-RINGIFP-O-RING
-
71700057 NUTNUT
-
81700235 PISTONPISTON
-
81700236 WEAR BANDWEAR BAND
-
81700077 TOP-OUT WASHERTOP-OUT WASHER
-
81700078 BACK-UP WASHERBACK-UP WASHER
-
91700228 SHAFTSHAFT
-
101700072 BUSHINGBUSHING
-
111700009 UPPER MOUNTUPPER MOUNT
-
121700230 BUMPERBUMPER
-
131700156 CYL HEAD ASM 215098-100CYL HEAD ASM 215098-100
