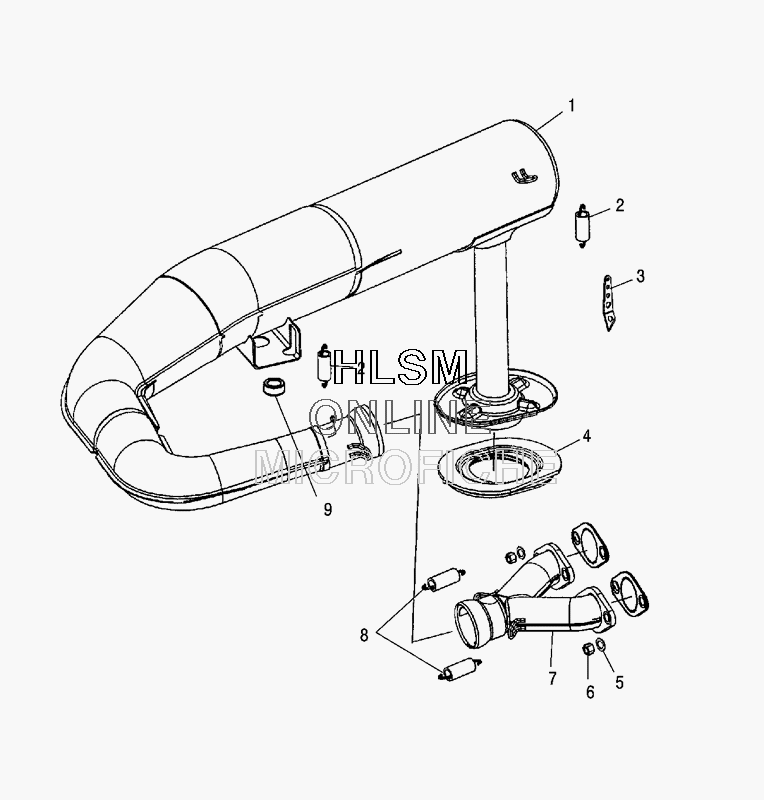

EXHAUST SYSTEM для Polaris 340 (S08NB3AS) - 2008 года выпуска
-
№АртикулНазвание
-
11261203-029 WELD-PIPE, TUNED, BLACKWELD-PIPE, TUNED, BLACK
-
27041687 SPRINGSPRING
-
35246202 BRKT-RETAINERBRKT-RETAINER
-
45411902 BOOT, OUTLETBOOT, OUTLET
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67547210 NUT-5/16-18 LINC, 28 THREADNUT-5/16-18 LINC, 28 THREAD
-
71261217-029 WELD-MANIFOLD, BLACKWELD-MANIFOLD, BLACK
-
87042332 SPRING, S.S.SPRING, S.S.
-
95433576 DAMPENER-VIBRATIONSDAMPENER-VIBRATIONS
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- • EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- MAGNETO
- NOSEPAN W/FOIL ASSEMBLY
- NOSEPAN/BUMPER
- OIL PUMP
- OIL TANK W/ AIR BOX ASSEMBLY
- RECOIL STARTER W/BLOWER HOUSING
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STEERING ASSEMBLY
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
