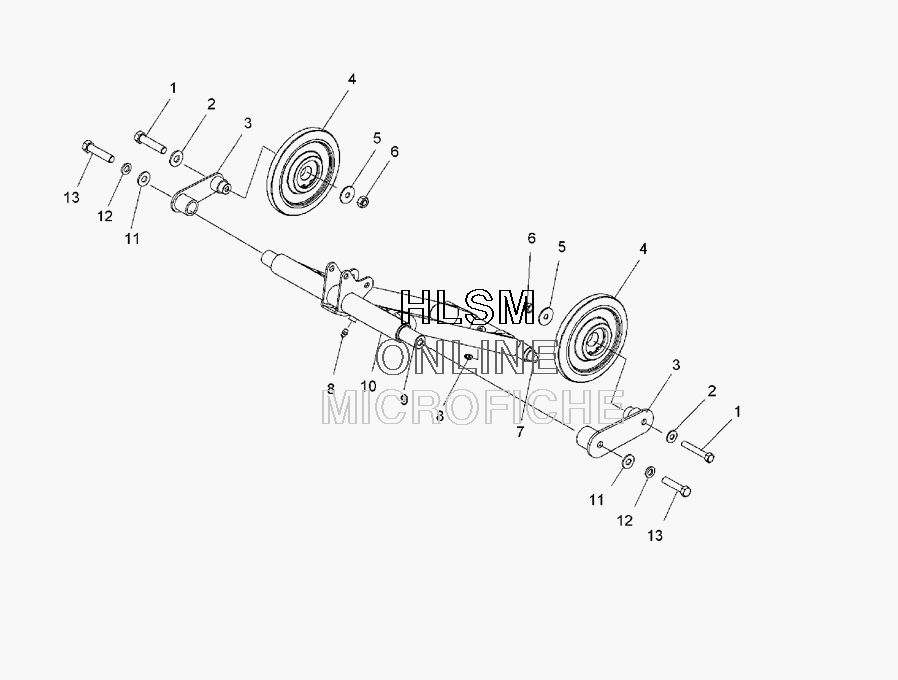

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 IQ LX (S08PD6HS) - 2008 года выпуска
-
№АртикулНазвание
-
17515485 BOLTBOLT
-
27556188 WASHER-FLEFT HAND390X.750X.065-YWASHER-FLEFT HAND390X.750X.065-Y
-
31542219-067 WELD-CARRIER WHEEL BRKT, BLACKWELD-CARRIER WHEEL BRKT, BLACK
-
41590278 WHEEL ASM, PLAIN, BLACK.WHEEL ASM, PLAIN, BLACK.
-
43514303 BEARING #6205BEARING #6205
-
47718407 RING-RETAININGRING-RETAINING
-
57556157 WASHER, .391X1.25X.105-MWASHER, .391X1.25X.105-M
-
67542451 NUT, NYLOKNUT, NYLOK
-
75133093 SHAFT-LOWERSHAFT-LOWER
-
87080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
95135277 SHAFT-RTA, M10, UPPERSHAFT-RTA, M10, UPPER
-
101542124-067 WELD-RTA, M-10, .803, BLKWELD-RTA, M-10, .803, BLK
-
117555984 WASHER, FLATWASHER, FLAT
-
127552614 WASHER, LOCKWASHER, LOCK
-
137518261 SCR-7/16-14X2.00 HXCP-P80-GR5YSCR-7/16-14X2.00 HXCP-P80-GR5Y
