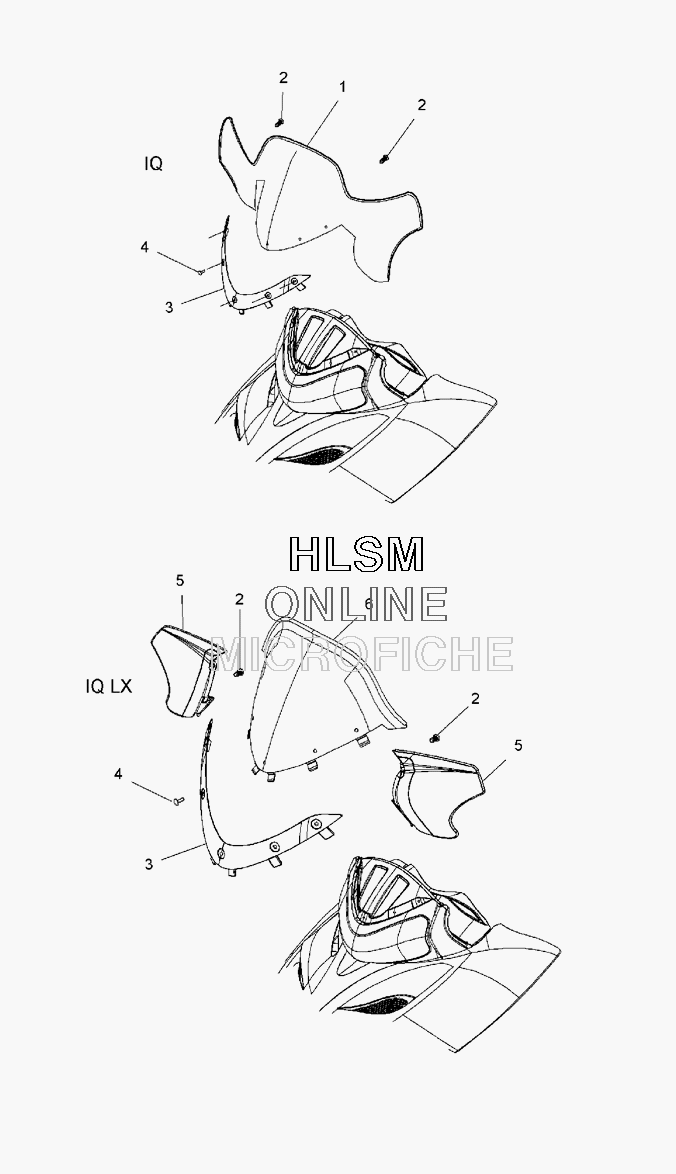

WINDSHIELD для Polaris 600 IQ LX (S08PD6HS) - 2008 года выпуска
-
№АртикулНазвание
-
27670101 CLIP, X-MAS TREECLIP, X-MAS TREE
-
35435520 RETAINER-WINDSHIELDRETAINER-WINDSHIELD
-
47621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
55435900 SHIELD-SIDE, SHORT, SMOKE, LEFT HANDSHIELD-SIDE, SHORT, SMOKE, LEFT HAND
-
55435901 SHIELD-SIDE, SHORT, SMOKE, RIGHT HANDSHIELD-SIDE, SHORT, SMOKE, RIGHT HAND
-
65435967 WINDSHIELD-MID, SB, SMOKEWINDSHIELD-MID, SB, SMOKE
Все узлы модели:
- AIR BOX ASSEMBLY
- BRAKE ASSEMBLY
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASIS - FRONT - TOP
- CHASSIS - FRONT
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ECU MOUNTING
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR W/THROTTLE ASSEMBLY
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK ASSEMBLY
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTER MOTOR W/BATTERY
- STATOR - FLYWHEEL
- STEERING - LOWER
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK IFS
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- • WINDSHIELD
- WIRING HARNESS
