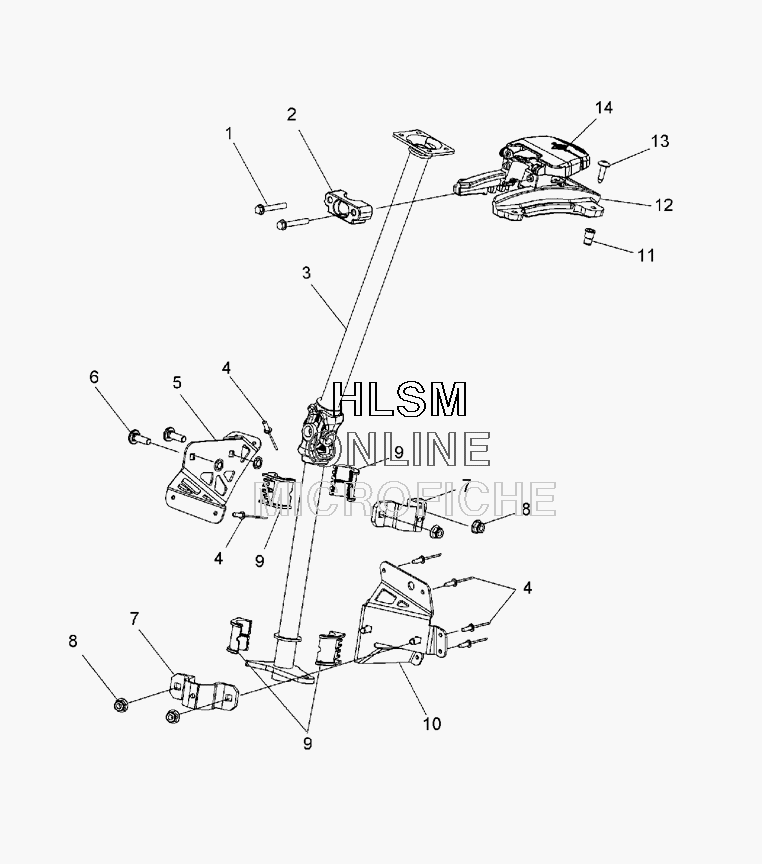

STEERING POST ASSEMBLY для Polaris 600 IQ TOURING AND EURO (S08PT6HS/HE) - 2008 года выпуска
-
№АртикулНазвание
-
17512093 SCREWSCREW
-
25435952 BLOCK-STEERING POST, FRT HALFBLOCK-STEERING POST, FRT HALF
-
31823214-329 WELD-STEERING POST, BLACKWELD-STEERING POST, BLACK
-
47661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
55250476 BRACKET-MID STEERING POSTBRACKET-MID STEERING POST
-
67517579 BOLT-CARR 5/16-X1''GR5 Y LOBOLT-CARR 5/16-X1''GR5 Y LO
-
75133648 BRKT-STEERING POST, MODBRKT-STEERING POST, MOD
-
87542343 NUT, FLANGENUT, FLANGE
-
95432785 BUSHINGBUSHING
-
101822856 WELD-BRACKET, LOWER STEER POSTWELD-BRACKET, LOWER STEER POST
-
117547069 NUTSERT, HEXNUTSERT, HEX
-
121822863 ASM-BLOCK, STEERING ADJ (INCL. 14)ASM-BLOCK, STEERING ADJ (INCL. 14)
-
137518520 SCR-1/4-20X1.0 TR/TX, P80, GR5, YSCR-1/4-20X1.0 TR/TX, P80, GR5, Y
-
145435955 LEVER-ADJ STEERINGLEVER-ADJ STEERING
