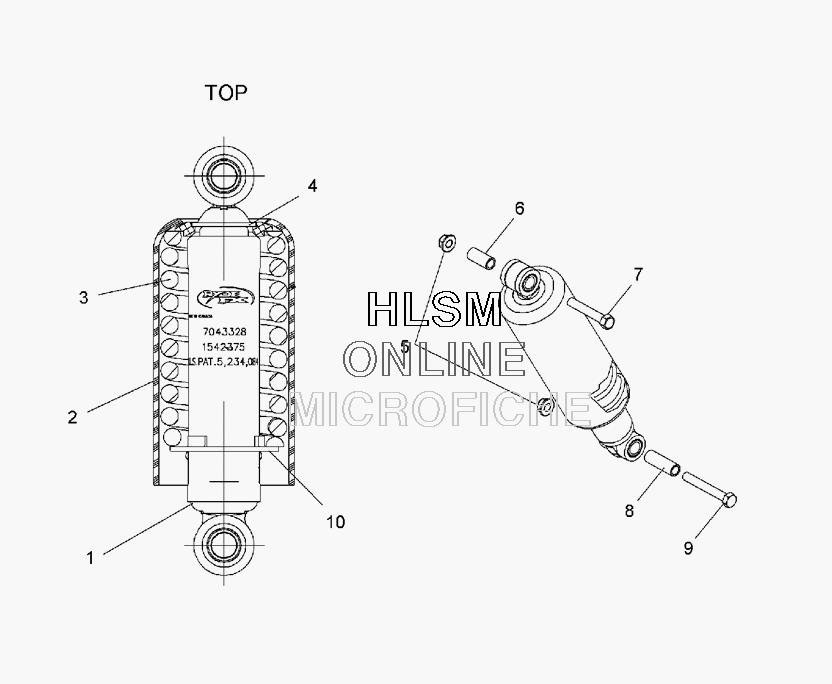

SUSPENSION - FRONT TRACK SHOCK для Polaris 600 IQ TOURING AND EURO (S08PT6HS/HE) - 2008 года выпуска
-
№АртикулНазвание
-
17043328 SHOCK-F/T, 136 TRSHOCK-F/T, 136 TR
-
25433503 SHIELD-SPRING, 3.00SHIELD-SPRING, 3.00
-
37041484-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
45630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
57547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
65333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
77515433 SCREWSCREW
-
85333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
97515417 SCREWSCREW
-
105245067 RETAINER-SPRING, GAB, PLATEDRETAINER-SPRING, GAB, PLATED
Все узлы модели:
- AIR BOX ASSEMBLY
- BACKREST W/GRAB HANDLE
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CHASSIS - FOOTRESTS
- CHASSIS - HOOP
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER FOAM AND FOIL
- FENDERS W/ SIDE PANELS
- FRONT BUMPER W/NOSEPAN
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTER MOTOR W/BATTERY
- STATOR - FLYWHEEL
- STEERING - LOWER
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- • SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SWAY BAR
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD
- WIRING HARNESS
