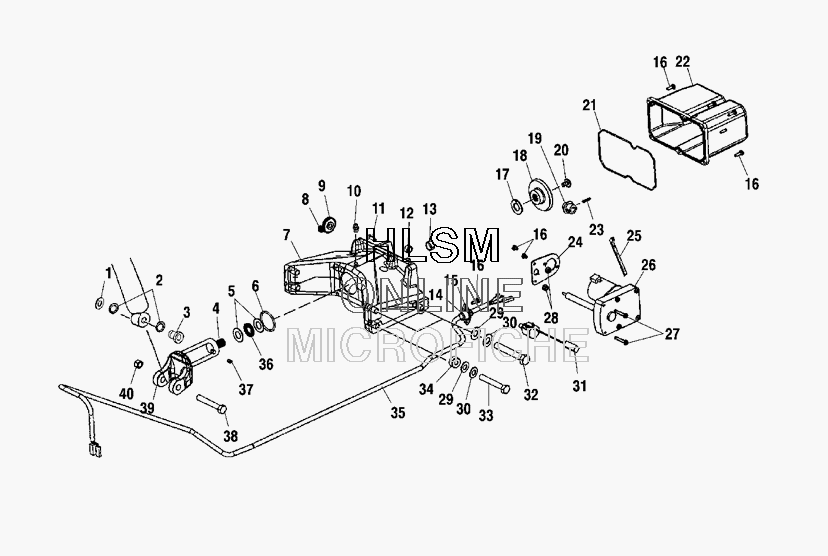

ELECTRIC MODULE для Polaris IQ CRUISER AND EURO (S08PY7FS) - 2008 года выпуска
-
№АртикулНазвание
-
15133403 BUSHING-.875X1.125X.100BUSHING-.875X1.125X.100
-
25411092 O-RINGO-RING
-
35133402 BUSHING-FLANGE, .385X.870X1.110BUSHING-FLANGE, .385X.870X1.110
-
45133159 SHAFT-SCREW, M-10 ACESHAFT-SCREW, M-10 ACE
-
53514388 BEARING-RACEWAY, M-10 ACEBEARING-RACEWAY, M-10 ACE
-
65412229 O-RING-1.23X.443X.103O-RING-1.23X.443X.103
-
71541692 ASM-CASTING, M-10 ACE, ELEC (INCL. 6, 10, 12, 13)ASM-CASTING, M-10 ACE, ELEC (INCL. 6, 10, 12, 13)
-
85434728 GEAR-PLASTIC, 12 TOOTH SPURGEAR-PLASTIC, 12 TOOTH SPUR
-
95434727 GEAR-PLASTIC, 32 TOOTH, SPURGEAR-PLASTIC, 32 TOOTH, SPUR
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCR-8-32X5/8 HX/SOC/FL/HD-YSCR-8-32X5/8 HX/SOC/FL/HD-Y
-
123514385 BEARING-PLAIN, .375X.469X.250BEARING-PLAIN, .375X.469X.250
-
133514403 BEARING-PLAIN, .500X.593X.375BEARING-PLAIN, .500X.593X.375
-
145434492 GROMMET-WIRE, M-10 ACE ELECGROMMET-WIRE, M-10 ACE ELEC
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER-THRUST, 1.024X.551X.059WASHER-THRUST, 1.024X.551X.059
-
183221135 GEAR-BEVEL, LARGE, M-10 ACEGEAR-BEVEL, LARGE, M-10 ACE
-
193221136 GEAR-BEVEL, SMALL, M-10 ACEGEAR-BEVEL, SMALL, M-10 ACE
-
207518152 SCR-5/16-24X3/8 TRTX, P80, GR8-YSCR-5/16-24X3/8 TRTX, P80, GR8-Y
-
215434293 SEAL-COVER, M-10 ACESEAL-COVER, M-10 ACE
-
225434292 COVER-MOTOR, M-10 ACE, ELECTRICCOVER-MOTOR, M-10 ACE, ELECTRIC
-
237661161 PIN-DRIVLOK, .125X.625PIN-DRIVLOK, .125X.625
-
245246536 PLATE-MOTOR SUPPORT, M10 ACEPLATE-MOTOR SUPPORT, M10 ACE
-
257080138 CABLE TIECABLE TIE
-
264010596 MOTOR-M-10 ACE, ELECTRICMOTOR-M-10 ACE, ELECTRIC
-
277518087 SCR-8-32X1 TRX/PN HD TFM-YSCR-8-32X1 TRX/PN HD TFM-Y
-
287547004 NUTNUT
-
297556042 WASHERWASHER
-
307552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
314010780 POTENTIOMETER-M10 ACE, 10 TURNPOTENTIOMETER-M10 ACE, 10 TURN
-
327518006 SCR-3/8-16X1-HX/CP-GR5-P80-YSCR-3/8-16X1-HX/CP-GR5-P80-Y
-
337518005 SCR-3/8-16X1.50-HX/CP-GR5-P80YSCR-3/8-16X1.50-HX/CP-GR5-P80Y
-
345133351 SPACER-.390X1.00X.375SPACER-.390X1.00X.375
-
352461104 HARNESS-WIRE, M10 ACE, ELECTRIC (INCL. 14)HARNESS-WIRE, M10 ACE, ELECTRIC (INCL. 14)
-
363514387 BEARING-THRUST, M-10 ACEBEARING-THRUST, M-10 ACE
-
377518037 SCR-SET, 1/4-28X1/4''SCR-SET, 1/4-28X1/4''
-
387515438 BOLTBOLT
-
395133325 CLEVIS-MACHINED, M-10 ACECLEVIS-MACHINED, M-10 ACE
-
407542439 NUT, NYLOKNUT, NYLOK
