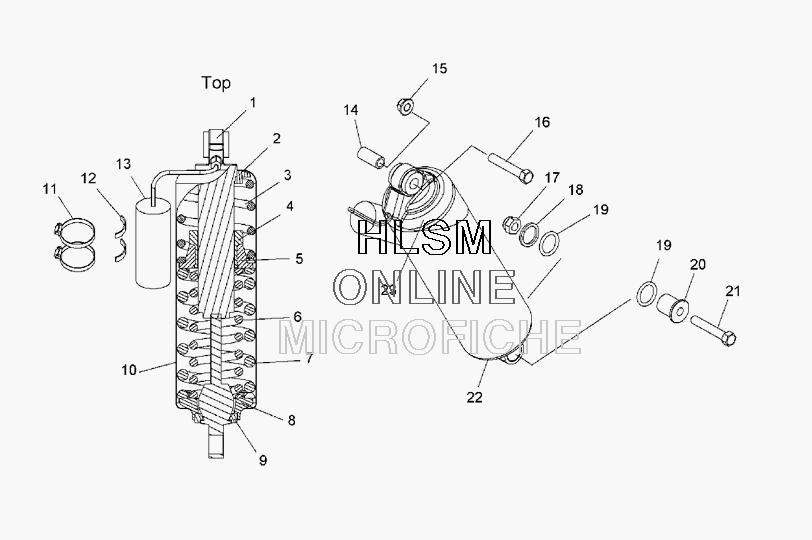

SUSPENSION - REAR SHOCK TRACK для Polaris IQ CRUISER AND EURO (S08PY7FS) - 2008 года выпуска
-
№АртикулНазвание
-
17043216 SHOCK-R/T, M-10SHOCK-R/T, M-10
-
25134921 RETAINER-SPRING, M10, RTS, UPPERRETAINER-SPRING, M10, RTS, UPPER
-
37042207-067 SPRING-COM, .375R, 5.20, 273#, BLACKSPRING-COM, .375R, 5.20, 273#, BLACK
-
45436109 BUSHING-OVERLOAD, M10, RTSBUSHING-OVERLOAD, M10, RTS
-
55135077 RETAINER-SPR, M10, RTS, MID, .25RETAINER-SPR, M10, RTS, MID, .25
-
67042206-067 SPRING-COM, .394R, 5.46, 629#, BLACKSPRING-COM, .394R, 5.46, 629#, BLACK
-
77042208-067 SPRING-COM, .515R, 6.40, 715#, BLACKSPRING-COM, .515R, 6.40, 715#, BLACK
-
85134780 RETAINER-SPRING, M10, RTS, LOWERRETAINER-SPRING, M10, RTS, LOWER
-
95133778 COLLAR-SPRING, SLOTTEDCOLLAR-SPRING, SLOTTED
-
102683871 COVER-SPRING, NYLON, M10, RTSCOVER-SPRING, NYLON, M10, RTS
-
117081261 CLAMP-HOSE, 1-2DIA, 5/16 WIDE, SSCLAMP-HOSE, 1-2DIA, 5/16 WIDE, SS
-
125812812 PAD-RUBBER, ADHESIVE, 3/8X1-5/8PAD-RUBBER, ADHESIVE, 3/8X1-5/8
-
137173566 DECAL-M-10, FOX, RESDECAL-M-10, FOX, RES
-
145333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
157547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
167515415 SCREWSCREW
-
177542439 NUT, NYLOKNUT, NYLOK
-
185133403 BUSHING-.875X1.125X.100BUSHING-.875X1.125X.100
-
195411092 O-RINGO-RING
-
205133402 BUSHING-FLANGE, .385X.870X1.110BUSHING-FLANGE, .385X.870X1.110
-
217515438 BOLTBOLT
-
225436401 CAP-SHOCK END, M10, BOTTOMCAP-SHOCK END, M10, BOTTOM
-
235436400 CAP-SHOCK END, M10, TOPCAP-SHOCK END, M10, TOP
