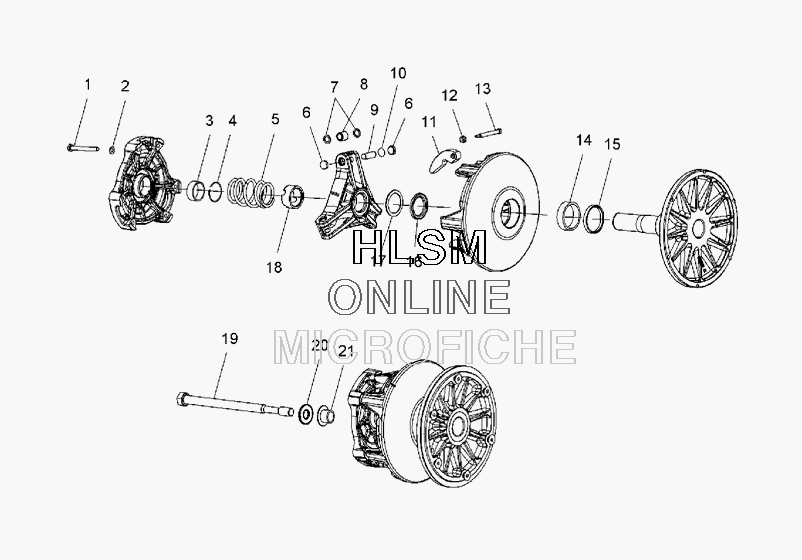

CLUTCH - DRIVE для Polaris IQ SHIFT AND EURO (S08PB6FS/FE) - 2008 года выпуска
-
№АртикулНазвание
-
-1321928 ASM-DRIVE CLUTCH, BASIC, 225 W/B (LESS 5, 11, 18-20)ASM-DRIVE CLUTCH, BASIC, 225 W/B (LESS 5, 11, 18-20)
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57042083 SPRING-CLUTCH, BLACK/GREENSPRING-CLUTCH, BLACK/GREEN
-
65430445 BUTTON, GUIDE, .245''BUTTON, GUIDE, .245''
-
75430945 WASHERWASHER
-
81321622 ASM., ROLLER AND BUSHING(3)ASM., ROLLER AND BUSHING(3)
-
95133079 PIN-ROLLER, 1'', SBNPIN-ROLLER, 1'', SBN
-
102200387 KIT, SHIM, DRIVE CLUTCHKIT, SHIM, DRIVE CLUTCH
-
111321586 WT/BUSH.ASM, 10-62(3)WT/BUSH.ASM, 10-62(3)
-
127541906 NUT FLEXLOCNUT FLEXLOC
-
137515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
143576502 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165134018 SPACER, .130, PMSPACER, .130, PM
-
175242981 SPACER, .025SPACER, .025
-
175210754 SPACER, .050SPACER, .050
-
175210753 SPACER, .032SPACER, .032
-
175210752 SPACER, .020SPACER, .020
-
185020425 NUT, JAMNUT, JAM
-
197517501 SCR-M14X1.5X215, HX, 10.9, Y35, RSCR-M14X1.5X215, HX, 10.9, Y35, R
-
207556003 WASHERWASHER
-
215132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
