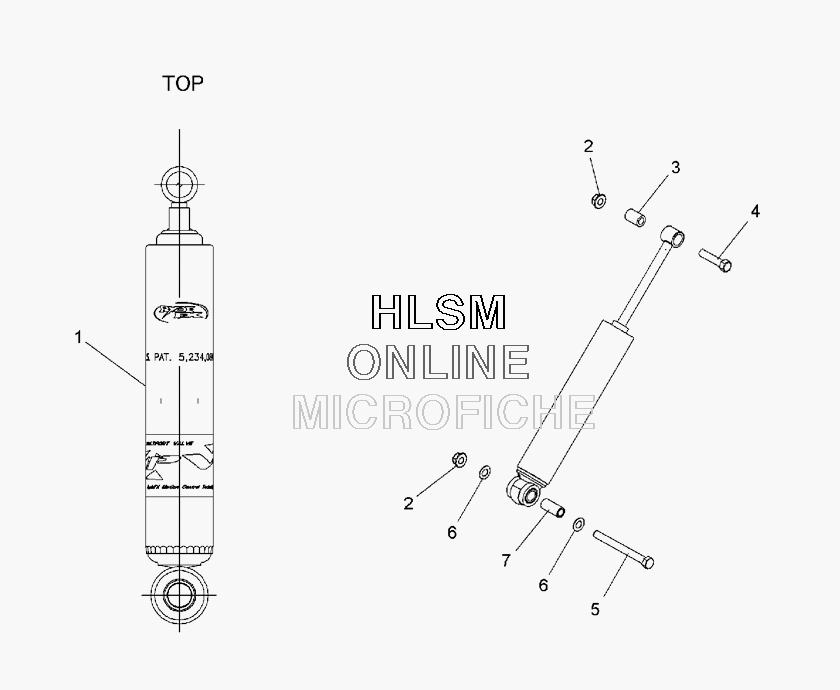

SUSPENSION - REAR SHOCK TRACK для Polaris IQ SHIFT AND EURO (S08PB6FS/FE) - 2008 года выпуска
-
№АртикулНазвание
-
17043281 SHOCK-R/T, ARVIN MPVSHOCK-R/T, ARVIN MPV
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
35010422 BUSHINGBUSHING
-
47512410 BOLTBOLT
-
57518263 SCR-3/8-24X4.00 HXCP-GR5-YSCR-3/8-24X4.00 HXCP-GR5-Y
-
67555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
75333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
