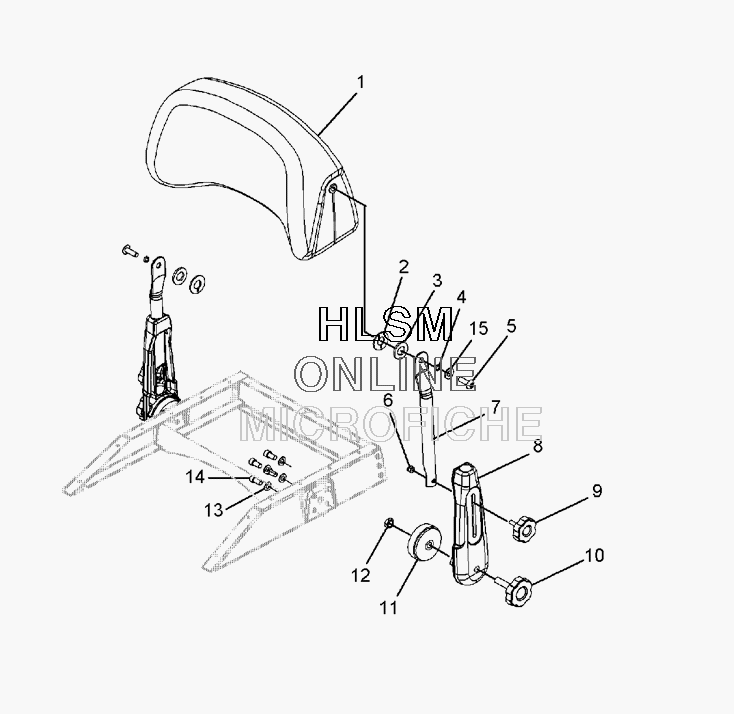

BACKREST ASSEMBLY для Polaris WIDETRAK LX AND EURO (S08SU4BS) - 2008 года выпуска
-
№АртикулНазвание
-
12684071 ASM-BACKRESTASM-BACKREST
-
12684070 ASM-SEAT BACK COVERASM-SEAT BACK COVER
-
25250122 PLATE-BACKER W/ NOTCHPLATE-BACKER W/ NOTCH
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45135464 SPACER-BACKREST PIVOTSPACER-BACKREST PIVOT
-
57510004 SCR-3/8-16X1 1/4 TORX/TRUSSSCR-3/8-16X1 1/4 TORX/TRUSS
-
67542324 NUT, NYLOKNUT, NYLOK
-
75250118-067 ARM-ADJUSTER, BACKREST, BLACKARM-ADJUSTER, BACKREST, BLACK
-
85436635 MOUNT-ADJ ARMMOUNT-ADJ ARM
-
97081484 KNOB-LARGE, 5/16'', LOW SHLDERKNOB-LARGE, 5/16'', LOW SHLDER
-
107081344 KNOB-LARGEKNOB-LARGE
-
115135462 CYLINDER-RATCHETCYLINDER-RATCHET
-
127547376 NUT-JAM, 1/2-13, HEX-ZNUT-JAM, 1/2-13, HEX-Z
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147518798 SCR-3/8-16X.75 HXSOC, W/PATCHSCR-3/8-16X.75 HXSOC, W/PATCH
-
157555823 WASHERWASHER
