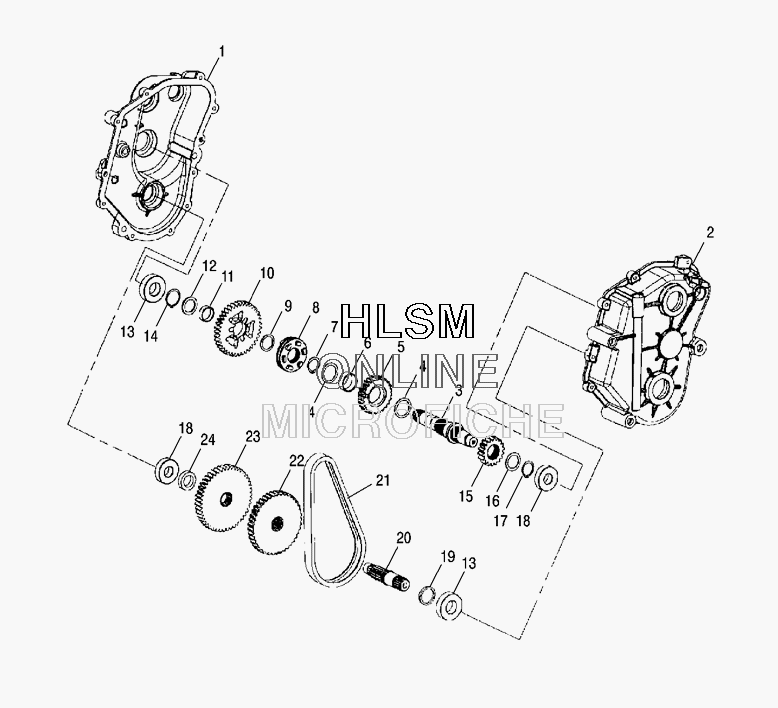

GEARCASE W/ BELT для Polaris WIDETRAK LX AND EURO (S08SU4BS) - 2008 года выпуска
-
№АртикулНазвание
-
-1332463 ASM-GEARCASE, WIDETRAK, BASIC [INCL. 1-24 AND ALL FROM GEARCASE W/ FORKS]ASM-GEARCASE, WIDETRAK, BASIC [INCL. 1-24 AND ALL FROM GEARCASE W/ FORKS]
-
13234474 GEARCASE, RIGHT HAND, WTGEARCASE, RIGHT HAND, WT
-
23234174 GEARCASE, LEFT HANDGEARCASE, LEFT HAND
-
33233514 SHAFT, REVERSESHAFT, REVERSE
-
43233378 WASHER, THRUSTWASHER, THRUST
-
53233513 SPROCKET, 25TSPROCKET, 25T
-
63233384 BEARING, NEEDLEBEARING, NEEDLE
-
73233377 RING, RETAININGRING, RETAINING
-
83233512 DOG, ENGAGEMENT, L/RDOG, ENGAGEMENT, L/R
-
93233619 WASHER, THRUSTWASHER, THRUST
-
103233511 GEAR, 39TGEAR, 39T
-
113233103 BEARING, NEEDLEBEARING, NEEDLE
-
123233099 WASHERWASHER
-
133233019 BEARINGBEARING
-
143233106 RING, SNAPRING, SNAP
-
153233515 GEAR, 18TGEAR, 18T
-
163233381 SPACERSPACER
-
173233516 RING, RETAININGRING, RETAINING
-
183233018 BEARINGBEARING
-
193233418 SPACERSPACER
-
203233521 SHAFT, OUTPUTSHAFT, OUTPUT
-
213233520 CHAIN, 66P, 3/4W, HYVOCHAIN, 66P, 3/4W, HYVO
-
223233519 SPROCKET, 41T, 15T SPLINESPROCKET, 41T, 15T SPLINE
-
233233518 GEAR, 47TGEAR, 47T
-
243233517 SPACERSPACER
