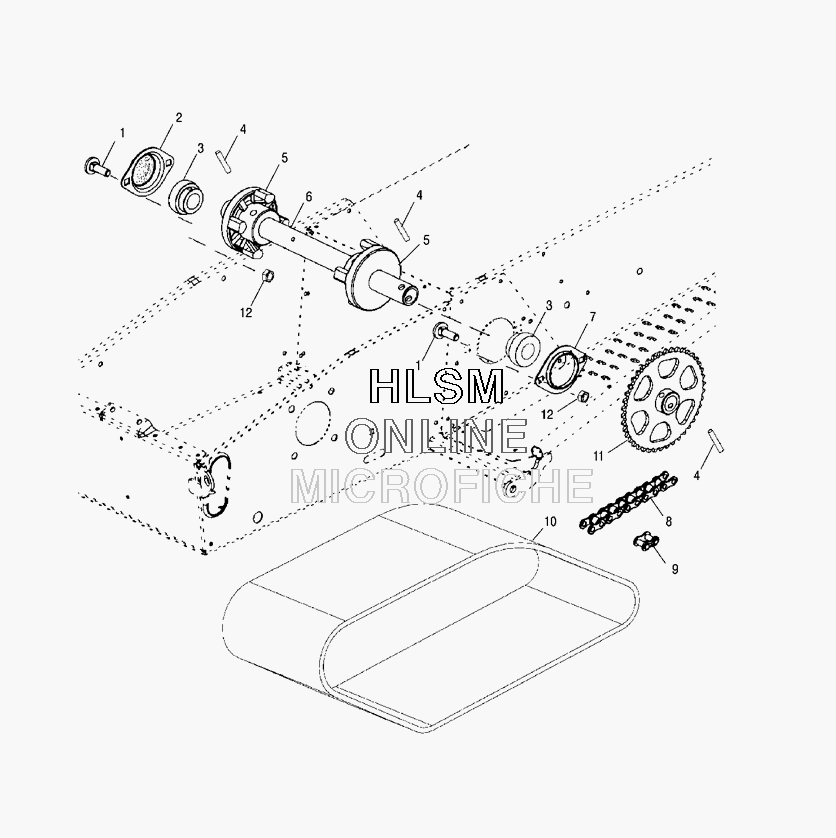

DRIVE SHAFT ASSY. для Polaris 120 AND EURO (S09WB1AS/AE) - 2009 года выпуска
-
№АртикулНазвание
-
17517736 BOLT, CARR-5/16-18X1/2, GR5-YBOLT, CARR-5/16-18X1/2, GR5-Y
-
25244302 FLANGE, 2 BOLT, COVEREDFLANGE, 2 BOLT, COVERED
-
33514338 BEARING-1'', SET SCREWBEARING-1'', SET SCREW
-
47661913 PIN, SPRINGPIN, SPRING
-
55433455 SPROCKET-4-LUGSPROCKET-4-LUG
-
66230172 SHAFT, DRIVESHAFT, DRIVE
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83221116 CHAIN, ROLLER, #40CHAIN, ROLLER, #40
-
93221122 LINK, CONNECTING, #40 DLLINK, CONNECTING, #40 DL
-
105411751 TRACK, TRI-STAR, 10X68TRACK, TRI-STAR, 10X68
-
111013095 SPROCKET, 42T, 1'' SHAFTSPROCKET, 42T, 1'' SHAFT
-
127542344 NUT, NYLOKNUT, NYLOK
