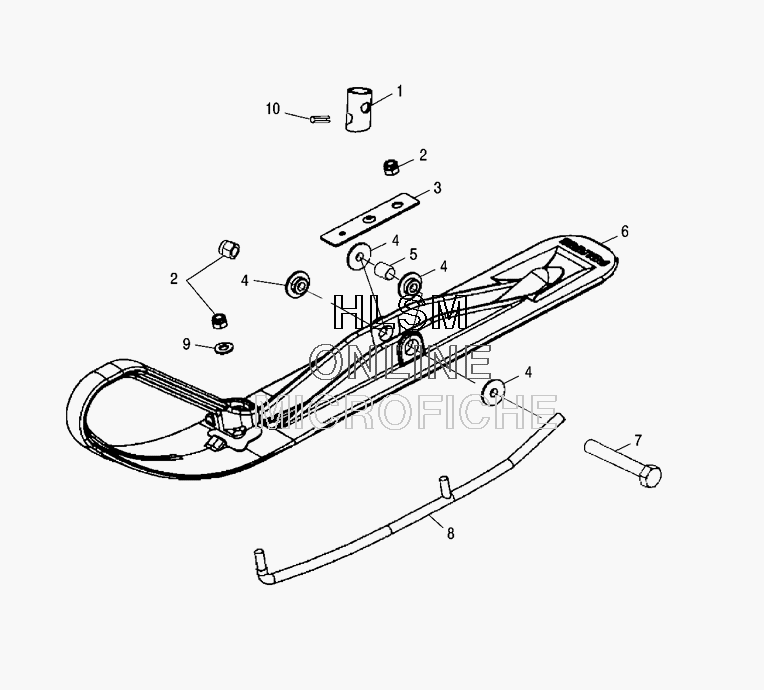

SKI ASSEMBLY для Polaris 120 AND EURO (S09WB1AS/AE) - 2009 года выпуска
-
№АртикулНазвание
-
15132470 TUBE, SPACERTUBE, SPACER
-
27542324 NUT, NYLOKNUT, NYLOK
-
35243980 BRKT, SKI STOPBRKT, SKI STOP
-
45132328 BUSHING, .328 ID X 1.04 ODBUSHING, .328 ID X 1.04 OD
-
55132284 BUSHING-SPACERBUSHING-SPACER
-
61820765-070 ASM-SKI, BLACK (INCL. 2-5, 8, 9)ASM-SKI, BLACK (INCL. 2-5, 8, 9)
-
77515385 SCREWSCREW
-
81820766 SKAGSKAG
-
97558402 WASHER, FLATWASHER, FLAT
-
107661915 PIN, SPRINGPIN, SPRING
