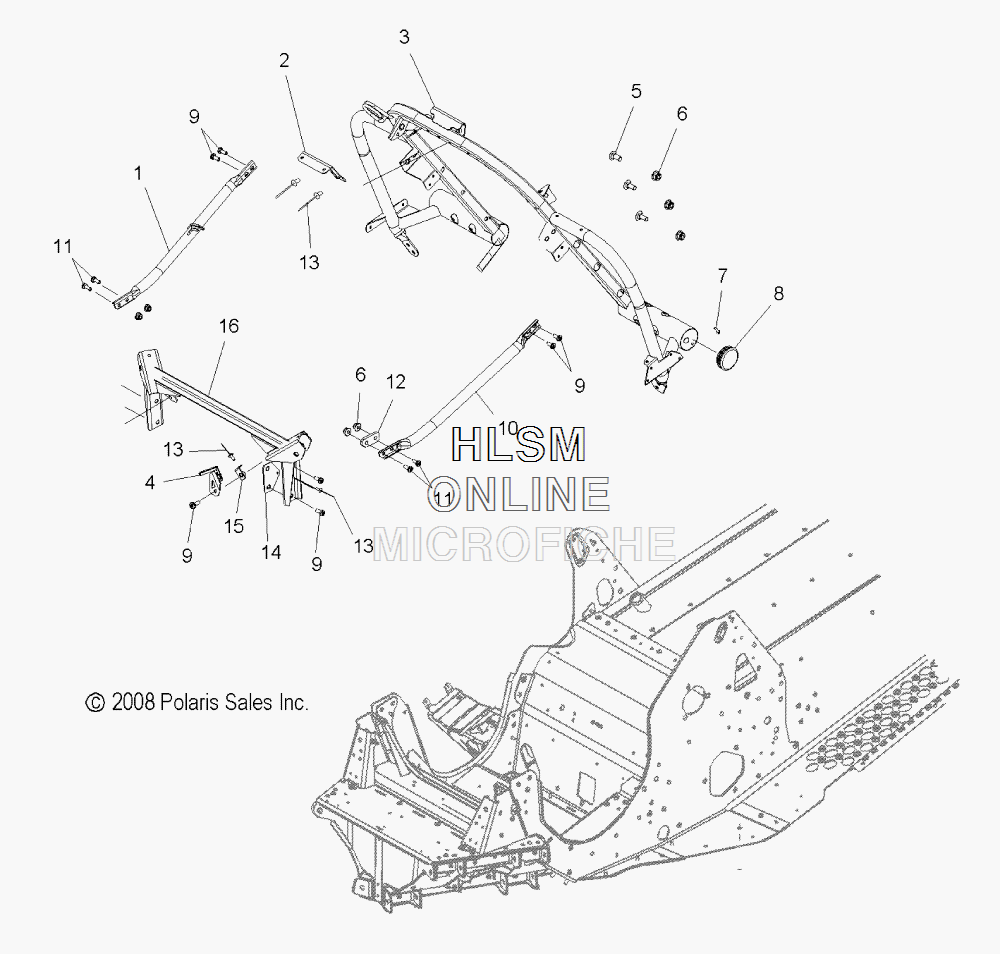

CHASSIS - FRONT для Polaris 600 RMK SHIFT 144 - 2009 года выпуска
-
№АртикулНазвание
-
11015810-067 BRACE, UPPER, RIGHT HAND (BLACK)BRACE, UPPER, RIGHT HAND (BLACK)
-
25251758 BRACKET, CONSOLE, MTN.BRACKET, CONSOLE, MTN.
-
31016277-067 MOUNT, STEERING HOOP (BLACK)MOUNT, STEERING HOOP (BLACK)
-
45249312-067 BRACKET, EXHAUST SOLENOID (BLACK)BRACKET, EXHAUST SOLENOID (BLACK)
-
57517428 BOLT, CARRIAGEBOLT, CARRIAGE
-
67542343 NUT, FLANGENUT, FLANGE
-
77512026 SCREWSCREW
-
85413074 PLUG, TUBEPLUG, TUBE
-
97517810 SCREWSCREW
-
105334676-067 BRACE, UPPER BULKHEAD SUPPORT, LEFT HAND (BLACK)BRACE, UPPER BULKHEAD SUPPORT, LEFT HAND (BLACK)
-
117518070 SCREWSCREW
-
125135003 SPACER, CHASSIS BRACE (LEFT HAND ONLY)SPACER, CHASSIS BRACE (LEFT HAND ONLY)
-
137661637 RIVETRIVET
-
141014820 ASM., PLATE NUTASM., PLATE NUT
-
151015027 ASM., PLATE/NUTASM., PLATE/NUT
-
161015368-067 CROSS MEMBER (BLACK)CROSS MEMBER (BLACK)
