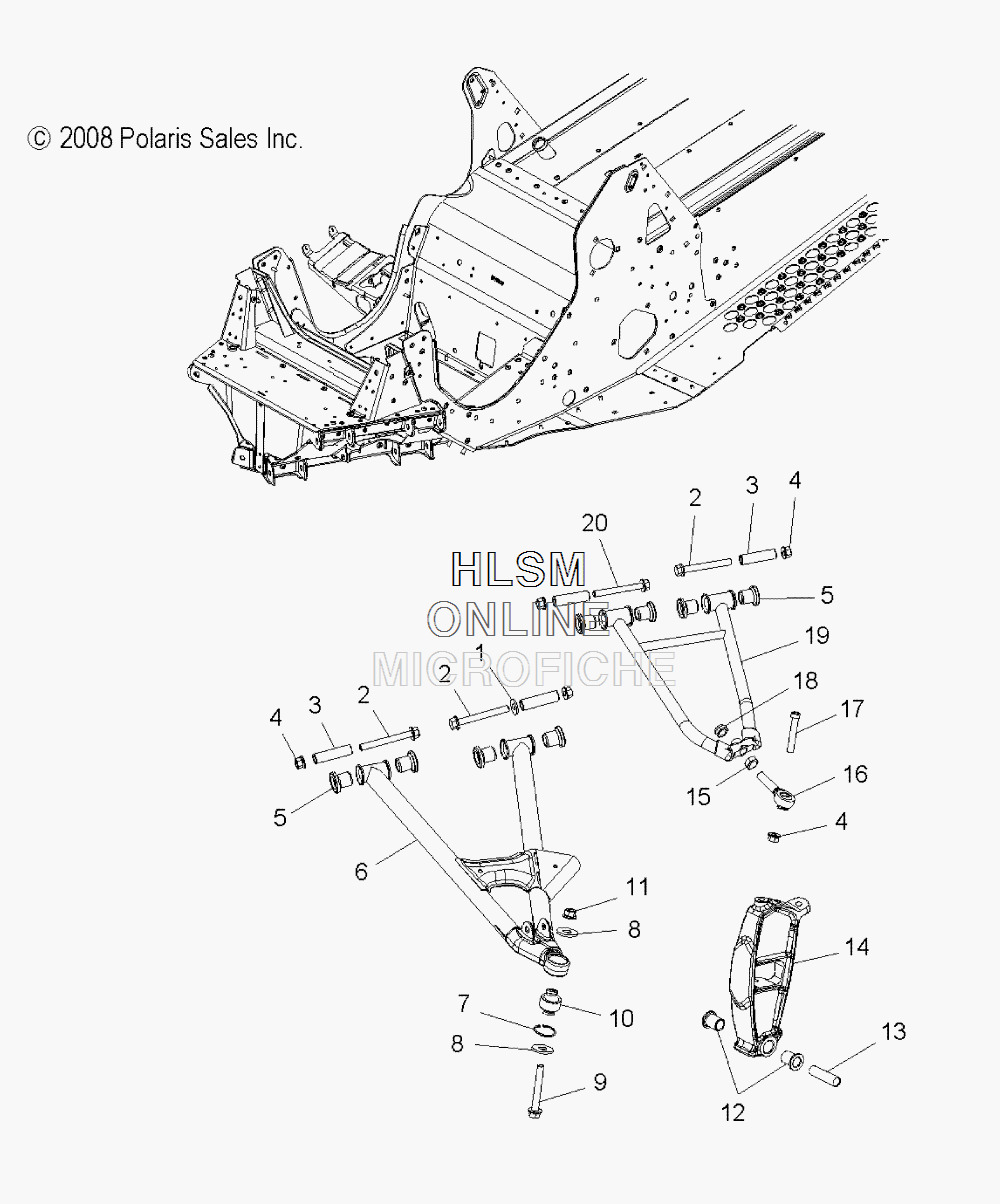

SUSPENSION - FRONT для Polaris 600 RMK SHIFT 144 - 2009 года выпуска
-
№АртикулНазвание
-
17555893 WASHER, FLATWASHER, FLAT
-
27518384 SCREWSCREW
-
35133860 SHAFT, PIVOTSHAFT, PIVOT
-
47547180 NUT, FLANGEDNUT, FLANGED
-
55434932 BUSHING, PIVOTBUSHING, PIVOT
-
62203025-067 KIT, LOWER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-7,10)KIT, LOWER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-7,10)
-
62203026-067 KIT, LOWER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-7,10)KIT, LOWER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-7,10)
-
77710539 RING, RETAININGRING, RETAINING
-
87556153 WASHERWASHER
-
97518478 SCREWSCREW
-
102203107 KIT, SPHERICAL BEARING, LOWER (INCL. 7)KIT, SPHERICAL BEARING, LOWER (INCL. 7)
-
117547344 NUTNUT
-
125133983 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
135010158 BUSHING, PIVOTBUSHING, PIVOT
-
141823245 ASM., SPINDLE, LEFT HAND (INCL. 12)ASM., SPINDLE, LEFT HAND (INCL. 12)
-
141823246 ASM., SPINDLE, RIGHT HAND (INCL. 12)ASM., SPINDLE, RIGHT HAND (INCL. 12)
-
157542711 NUT, JAMNUT, JAM
-
167061145 ROD ENDROD END
-
177518428 SCREWSCREW
-
187547104 NUTNUT
-
192203023-067 KIT, UPPER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,15,16,18)KIT, UPPER CONTROL ARM, LEFT HAND (BLACK) (INCL. 3-5,15,16,18)
-
192203024-067 KIT, UPPER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,15,16,18)KIT, UPPER CONTROL ARM, RIGHT HAND (BLACK) (INCL. 3-5,15,16,18)
-
207518942 SCREWSCREW
