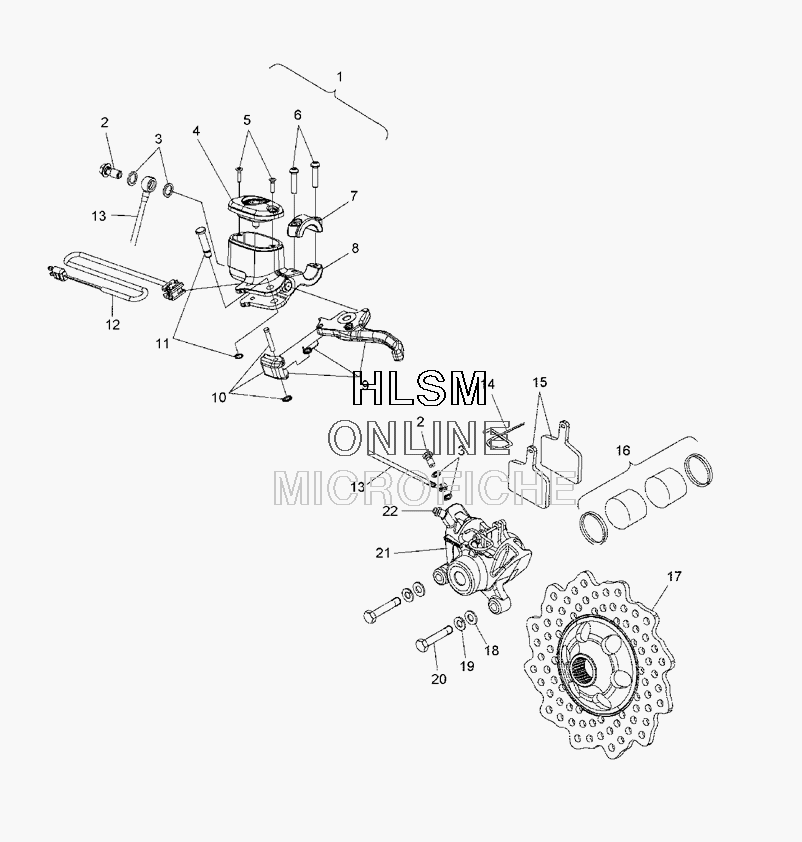

BRAKE ASSEMBLY для Polaris 800 ASSAULT RMK 146 (S09PL8ES) - 2009 года выпуска
-
№АртикулНазвание
-
12203919 KIT-FULLASM HI-RETR.98-23855 (INC 2-12)KIT-FULLASM HI-RETR.98-23855 (INC 2-12)
-
22203392 KIT-M10X1.25 BANJOKIT-M10X1.25 BANJO
-
32203393 KIT-STATOSEAL WASHER (2 PER)KIT-STATOSEAL WASHER (2 PER)
-
42203055 KIT-M/C COVER,HBKIT-M/C COVER,HB
-
52202796 KIT-RES COVER SCR 98-16758KIT-RES COVER SCR 98-16758
-
62202798 KIT-CLAMP SCR 98-16760KIT-CLAMP SCR 98-16760
-
72203093 KIT-CLAMP,HB,11/16''KIT-CLAMP,HB,11/16''
-
82203796 KIT-CYLINDERKIT-CYLINDER
-
92202791 KIT-BRAKE LEVER W/PARK,98-16753 (INCL. SPRING)KIT-BRAKE LEVER W/PARK,98-16753 (INCL. SPRING)
-
102203054 KIT-PARK LEVER,HBKIT-PARK LEVER,HB
-
112202799 KIT-PVT PINANDSNAP RNG 98-16761KIT-PVT PINANDSNAP RNG 98-16761
-
122202794 KIT-BRAKE LIGHT SWTCH 98-16756KIT-BRAKE LIGHT SWTCH 98-16756
-
132203758 KIT-BKLN30''INVFLR20°BJO9822799KIT-BKLN30''INVFLR20°BJO9822799
-
142202206 KIT-PIN RETAININGKIT-PIN RETAINING
-
152202727 KIT-BRAKE PAD,TYPE 94 (2 PER)KIT-BRAKE PAD,TYPE 94 (2 PER)
-
162202207 KIT-PISTON/SEALKIT-PISTON/SEAL
-
162202204 KIT-SEALKIT-SEAL
-
172203712 KIT-SERV.DISC,SAWTOOTH98-22377KIT-SERV.DISC,SAWTOOTH98-22377
-
187556160 WASHER,.380X.813X.150WASHER,.380X.813X.150
-
197552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
207515534 SCREWSCREW
-
212202742 KIT, ASM., BRAKE CALIPER (INCL. 14-16)KIT, ASM., BRAKE CALIPER (INCL. 14-16)
-
222202205 KIT-BLEEDER FITTINGKIT-BLEEDER FITTING
