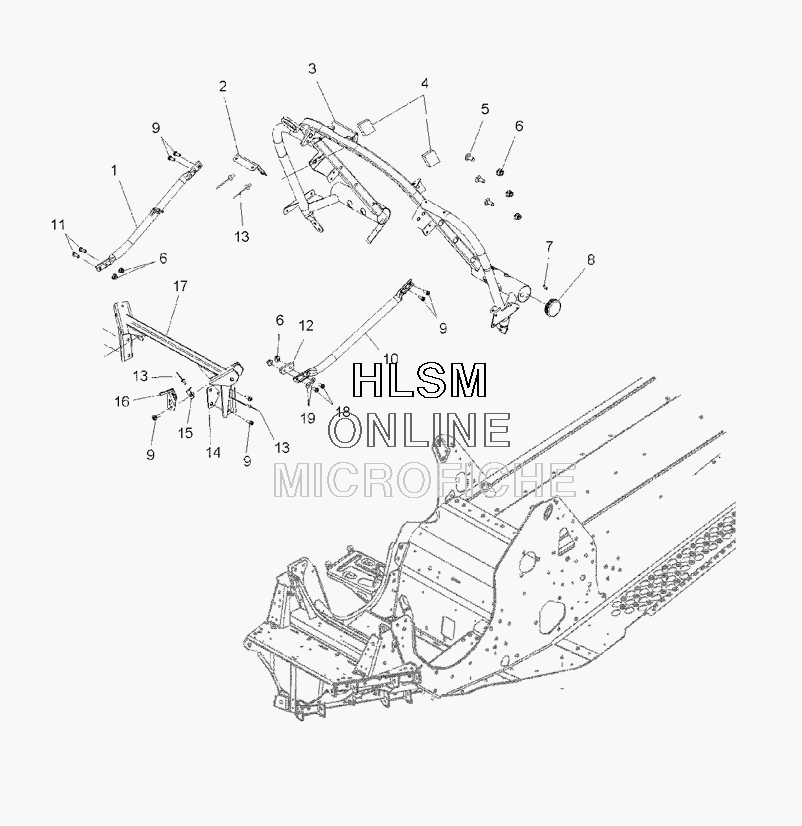

CHASSIS - FRONT для Polaris 800 ASSAULT RMK 146 (S09PL8ES) - 2009 года выпуска
-
№АртикулНазвание
-
11015810-067 WELD-BRACE UPPER BLACKDSP RIGHT HAND, BLACKWELD-BRACE UPPER BLACKDSP RIGHT HAND, BLACK
-
25251758 BRKT-CONSOLE,MTNBRKT-CONSOLE,MTN
-
31016277-067 WELD-STRG HOOP,MTN, BLACKWELD-STRG HOOP,MTN, BLACK
-
45813100 PAD-RUBBER,3 X 1.5X .5PAD-RUBBER,3 X 1.5X .5
-
57517428 BOLTBOLT
-
67542343 NUT,FLANGENUT,FLANGE
-
77512026 SCREWSCREW
-
85413074 PLUG-TUBE 2''ODPLUG-TUBE 2''OD
-
97517810 SCR,5/16X24X3/4 TRXPNHDSCR,5/16X24X3/4 TRXPNHD
-
105335296-067 BRACE-UPR BLKHD SPRT,LH,800BLKBRACE-UPR BLKHD SPRT,LH,800BLK
-
117518070 SCR-5/16-18X1,TRX,GR5,YSCR-5/16-18X1,TRX,GR5,Y
-
125135993 SPACER-CHASSIS BRACE,.50 (LH ONLY)SPACER-CHASSIS BRACE,.50 (LH ONLY)
-
137661637 RIVET,INTERLOCK,ZRIVET,INTERLOCK,Z
-
141014820 ASM-PLATE,NUTASM-PLATE,NUT
-
151015027 ASM-PLATE/NUTASM-PLATE/NUT
-
165249312-067 BRKT-EXHAUST SOLENOID,600, BLACKBRKT-EXHAUST SOLENOID,600, BLACK
-
171016775-329 WELD-CROSS MEMBER,ECOATWELD-CROSS MEMBER,ECOAT
-
187518004 SCR-5/16-18X1.25'' SC/HD/CP-BSCR-5/16-18X1.25'' SC/HD/CP-B
-
197558402 WASHER,FLATWASHER,FLAT
