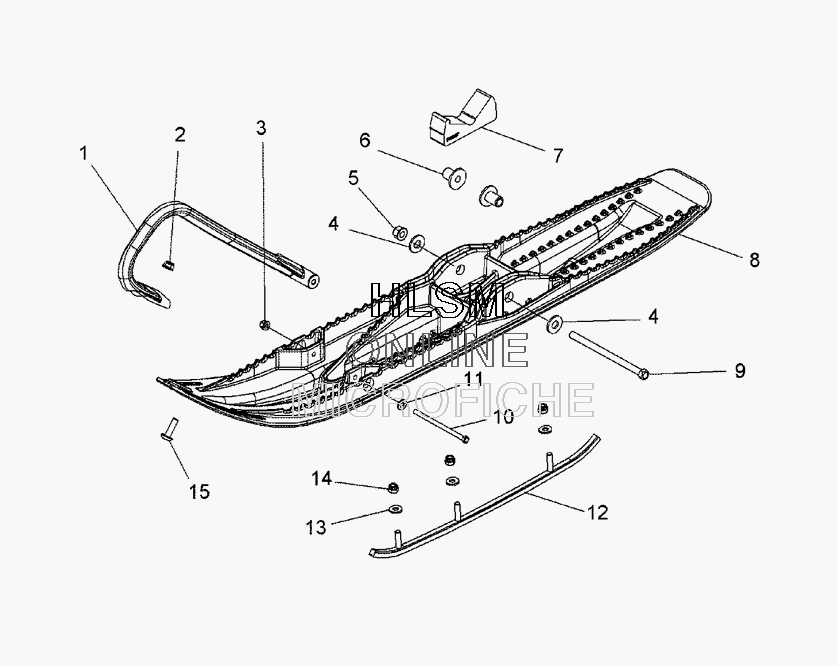

SKI ASSEMBLY для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE-PLASTIC SKI, BLACKTOE-PLASTIC SKI, BLACK
-
27542343 NUT, FLANGENUT, FLANGE
-
37542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
47556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
57547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
65134797 BUSHING-PLSTC SKI, .390 ID, LONGBUSHING-PLSTC SKI, .390 ID, LONG
-
75412794 STOP-SKI RUBBERSTOP-SKI RUBBER
-
81822889-070 ASM-SKI, RMK, WIDE, SVC, BLACK (INCL. 6)ASM-SKI, RMK, WIDE, SVC, BLACK (INCL. 6)
-
97518481 SCR-3/8-24X6.00-HXCP-GR8-YSCR-3/8-24X6.00-HXCP-GR8-Y
-
107518655 BOLT-1/4-20X4.25 HX/CP GR5BOLT-1/4-20X4.25 HX/CP GR5
-
117558301 WASHER, FLATWASHER, FLAT
-
122875723 CARBIDE SKAG 4'' 60DEG. 07 RMK (PAIR)CARBIDE SKAG 4'' 60DEG. 07 RMK (PAIR)
-
137555843 WASHER, WROUGHTWASHER, WROUGHT
-
147542324 NUT, NYLOKNUT, NYLOK
-
157518070 SCR-5/16-18X1, TRX, GR5, YSCR-5/16-18X1, TRX, GR5, Y
