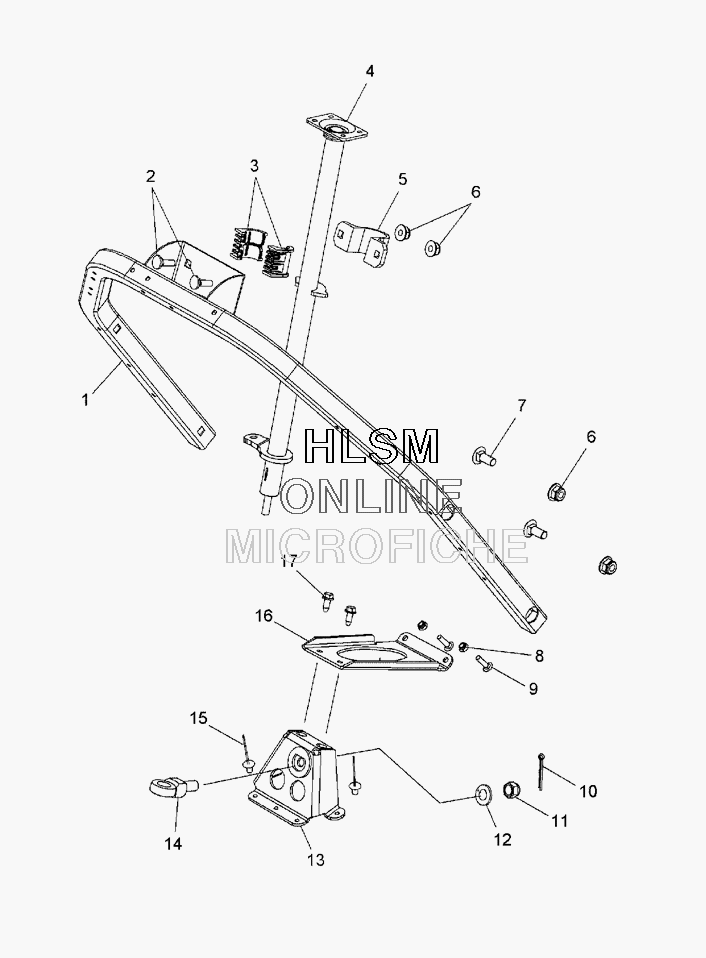

STEERING POST ASSEMBLY для Polaris IQ WIDETRAK AND EURO (S09PU7ES) - 2009 года выпуска
-
№АртикулНазвание
-
11016268-329 WELD-STEERING HOOP,WIDE,BLKWELD-STEERING HOOP,WIDE,BLK
-
27512331 BOLT, CARRIAGEBOLT, CARRIAGE
-
35432785 BUSHINGBUSHING
-
41823363-329 WELD-STEERING POST,WIDE,BLKWELD-STEERING POST,WIDE,BLK
-
55133648 BRKT-STEERING POST, MODBRKT-STEERING POST, MOD
-
67542343 NUT, FLANGENUT, FLANGE
-
77512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
87542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
97515203 BOLTBOLT
-
107661203 PIN, COTTERPIN, COTTER
-
117547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
127555883 WASHERWASHER
-
131016487-329 WELD-LOWER STEERING MOUNT,BLKWELD-LOWER STEERING MOUNT,BLK
-
147061144 BALL JOINT-STRGBALL JOINT-STRG
-
157661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
165252186-329 REINF-MOUNT, LWR STRNG POST, BLACKREINF-MOUNT, LWR STRNG POST, BLACK
-
177517386 SCREWSCREW
